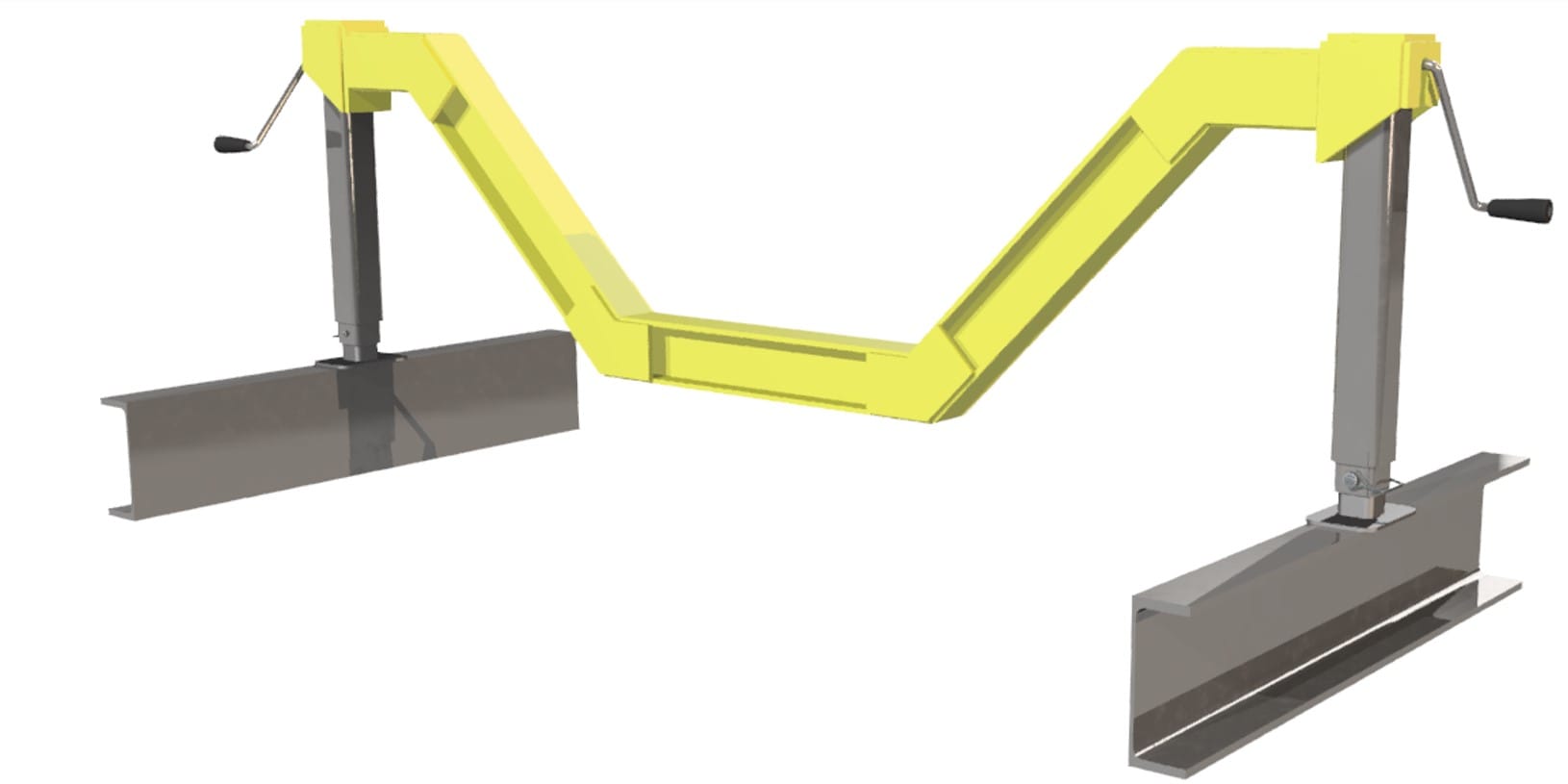

The Belt Lifting Beam is a purpose-built maintenance tool designed to safely raise troughed conveyor belts for roller changeout and shutdown activities.
With no electrical or hydraulic components, the system provides dependable lifting performance with quick setup and reduced downtime.
Available to suit multiple belt widths and trough angles, delivering safer and more efficient conveyor maintenance.
Description
The Belt Lifting Beam is a purpose-built conveyor maintenance tool manufactured by BBCP, designed to safely raise a troughed conveyor belt to facilitate efficient roller changeout.
Engineered for simplicity and reliability, the system eliminates the need for electric or hydraulic components, ensuring dependable operation in all environments.
Its robust yet lightweight construction allows for easy handling, rapid deployment, and minimal setup time, making it ideal for site maintenance teams.
The Belt Lifting Beam is available to suit a range of belt widths and troughing angles, providing flexibility across different conveyor systems.
SEC Business Group supplies BBCP maintenance solutions to improve safety and efficiency across conveyor operations.
The Belt Lifting Beam is designed to raise and support the conveyor belt, allowing maintenance teams to safely access and replace rollers without direct manual lifting.
| Description | Item Code | Unit Mass |
|---|---|---|
| Belt Lifting Jack ≥1200mm Belt Width | 810040 | 12 kg |
| Belt Width | Trough Angle | Item Code | Unit Mass |
|---|---|---|---|
| 1200mm | 35° | 810048 | 12 kg |
| 1200mm | 45° | 810068 | 13.8 kg |
| 1400mm | 35° | 810049 | 14.4 kg |
| 1400mm | 45° | 810069 | 15.6 kg |
| 1600mm | 35° | 810051 | 16.3 kg |
| 1600mm | 45° | 810071 | 17.8 kg |
| 1800mm | 35° | 810052 | 17.6 kg |
| 1800mm | 45° | 810072 | 19.1 kg |
| 2000mm | 35° | 810053 | 18.8 kg |
| 2000mm | 45° | 810073 | 20.5 kg |
| 2200mm | 35° | 810054 | 20.2 kg |
| 2200mm | 45° | 810074 | 21.9 kg |
This product is manufactured by BBCP and supplied by SEC Business Group.
For pricing, sizing, or application advice, please contact SEC Business Group.
