Conveyor Belt Turning Frame

Safe & Controlled Conveyor Belt Handling

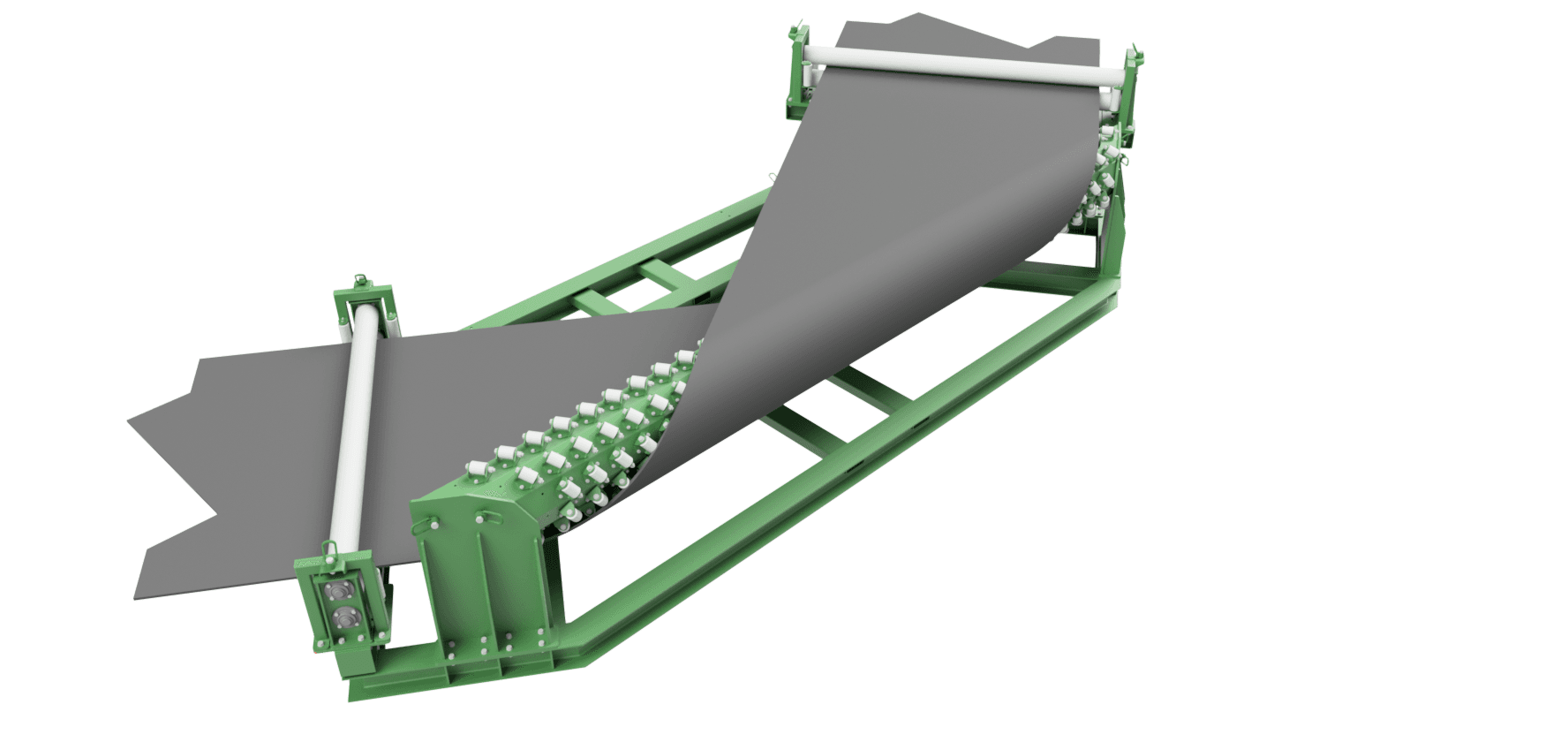

Belt Turning Frames are engineered conveyor belt handling systems manufactured by BBCP, designed to safely deflect conveyor belts during installation, removal, and maintenance operations.

These systems provide a controlled method of redirecting the belt, allowing handling activities to be performed away from the conveyor
centreline, improving safety and efficiency compared to traditional belt handling methods.

Designed for Heavy-Duty Belt Handling

Designed for heavy-duty use, Belt Turning Frames are capable of deflecting conveyor belts up to 90°, making them ideal for use
during belt changeouts and installation processes.

SEC Business Group supplies BBCP belt handling solutions to improve
safety, efficiency, and control during conveyor maintenance operations.

Features & Benefits

• Enables safe belt deflection during installation and maintenance.
• Allows work to be performed away from conveyor centreline.
• Improves safety and control during belt handling operations.
• Reduces manual handling risks and hazards.
• Designed for fast and efficient belt changeouts.
• Suitable for belts up to 2.4 metres wide.
• Line pull capacity up to 15 tonnes.
• Modular design for easy transport and setup.
• Durable construction for heavy-duty applications.
• Manufactured by BBCP.
• Supplied by SEC Business Group.

Applications

• Conveyor belt installation
• Belt removal and replacement
• Shutdown maintenance activities
• Mining and quarrying operations
• Bulk material handling systems
• Any application requiring safe belt handling and redirection

Design & Capabilities

• Standard systems designed for belt widths up to 2400mm.
• Capable of 90° belt deflection.
• Designed to handle high line pull loads up to 15 tonnes.

Custom designs are available for:

• Larger belt widths
• Alternative deflection angles
• Site-specific requirements

Standard Features

All BBCP Belt Turning Frames include:

• Rated crane lifting points
• Integrated frame lashing points
• Forklift pockets for on-site handling
• Modular design for transport efficiency
• Proof load certification

Compliance & Engineering

All equipment is designed and factory tested in accordance with stringent Australian standards, including:

• AS1554 (Welding)
• AS4100 (Steel Structures)
• AS1403 (Hoists & Lifting Equipment)
• AS3000 (Electrical Standards)

Additional compliance with site-specific or international standards is available on request.

Supply

This product is manufactured by BBCP and supplied by SEC Business Group.

For sizing, custom design, or pricing, please contact SEC Business Group.
