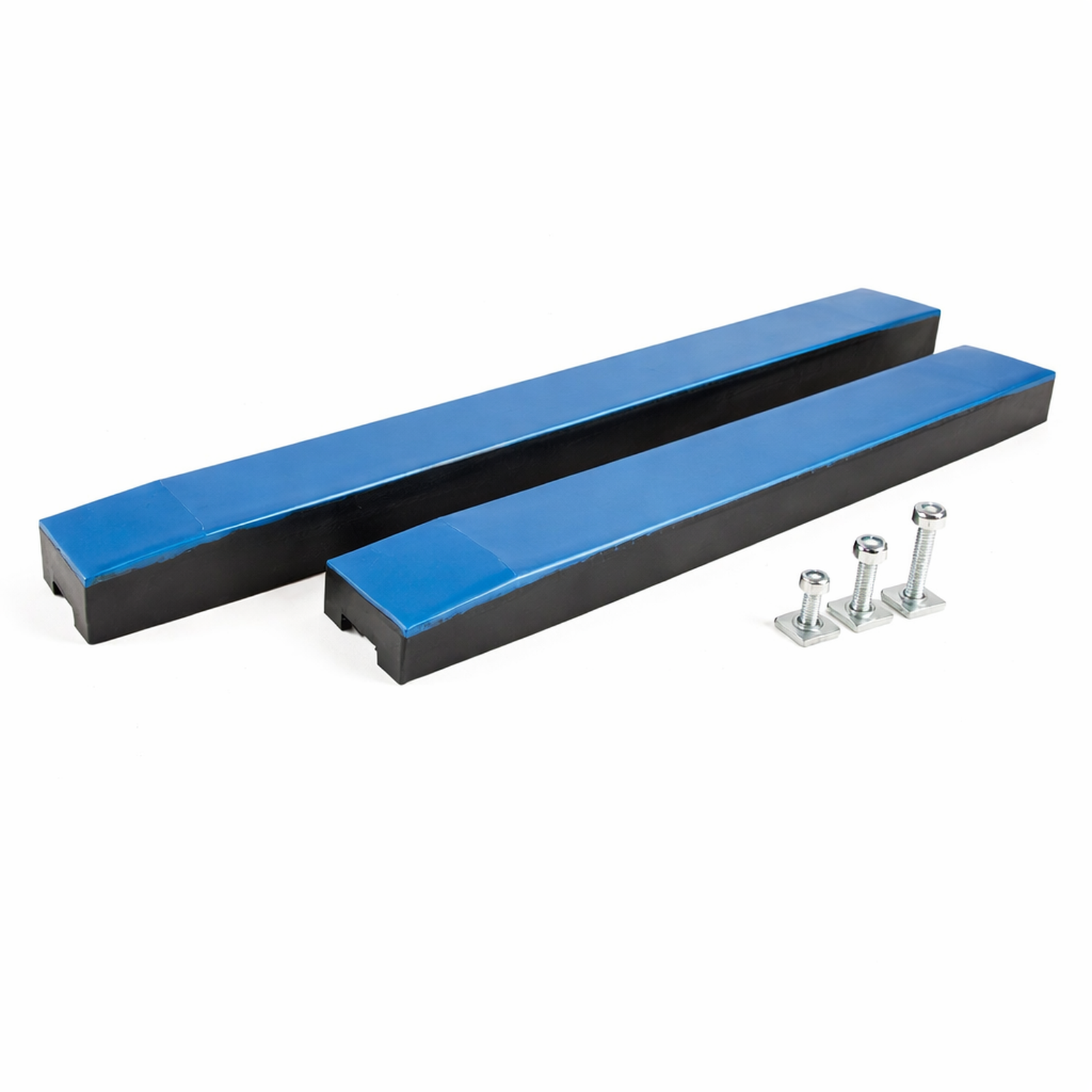

Conveyor Impact Bars

Impact Protection for Conveyor Loading Zones

Reglin Conveyor Impact Bars provide superior impact absorption
and low-friction belt support to protect belts in high-load areas.

Rubber and UHMWPE Construction

A 60 Duro rubber core absorbs impact energy while the UHMWPE top
layer reduces friction and belt wear.

Durable and Easy to Install

Featuring embedded T-track mounting and modular sizing options,
impact bars are ideal for impact beds and retrofit applications.

Description

Impact Absorption and Low-Friction Support for Loading Zones

Conveyor Impact Bars are premium-grade impact-resistant support bars manufactured by Reglin, designed for use in conveyor loading zones and impact beds to protect the belt and improve system performance.

Each impact bar combines a highly elastic 60 Duro rubber base with a low-friction UHMWPE (Ultra High Molecular Weight Polyethylene) top layer, delivering both impact absorption and smooth belt movement under heavy loading conditions.

Enhanced Belt Protection and Efficiency

The rubber core absorbs the energy from falling material, while the UHMWPE sliding surface reduces friction and belt wear. This combination helps extend belt life, minimise maintenance, and improve conveyor efficiency.

SEC Business Group supplies Reglin impact bar solutions to support conveyor performance across mining, quarrying, and bulk material handling industries.

Features & Benefits

Premium 60 Duro rubber core for excellent impact absorption.
UHMWPE top layer provides low-friction sliding surface.
Fully vulcanised bond between rubber and UHMWPE for durability.
Reduces belt wear and friction in loading zones.
Tapered ends minimise belt drag and eliminate catch points.
Ensures smooth belt transition through impact zones.
Embedded aluminium T-track for secure and easy installation.
Lightweight design for easy handling and maintenance.
Suitable for impact beds and cradle systems.
Manufactured by Reglin.
Supplied by SEC Business Group.

Technical Information

Rubber

Property	Value	Standard
Polymer	SBR
Colour	Black
Specific Gravity	1.12	ASTM D297
Hardness	60° ± 5° Shore A	ASTM D2240
Tensile Strength	17.5 MPa (min)	ASTM D412
Elongation @ Break	450% (min)	ASTM D412
Tear Strength	30 N/mm (min)	ASTM D624

UHMWPE

Property	Value	Standard
Polymer	UHMWPE
Colour	Blue
Specific Gravity	0.935	ASTM D297
Hardness	66 Shore D	ASTM D2240

Available Sizes

Reglin Conveyor Impact Bars are available in a range of standard sizes and can also be cut to length to suit specific impact bed or loading zone requirements.

Part Number	Description	Weight (Each)
IB050250	50mm × 250mm × 1220mm with AL-65 T-Track	17 kg
IB050690	50mm × 690mm × 1220mm with 3 × AL-65 T-Track @ 220mm centres	48 kg
IB055	55mm × 100mm × 1500mm with AL-65 T-Track (Both Ends Tapered)	10 kg
IB07512	75mm × 100mm × 1200mm with AL-65 T-Track (Both Ends Tapered)	10.6 kg
IB07514	75mm × 100mm × 1400mm with AL-65 T-Track (Both Ends Tapered)	12.4 kg
IB07515	75mm × 100mm × 1500mm with AL-65 T-Track (Both Ends Tapered)	13.3 kg

Technical drawings available on request.

Design & Installation

Embedded aluminium T-track for fastening using T-bolt assemblies
Designed for installation on impact beds and cradle systems
Suitable for new installations or retrofit applications
Custom lengths available to suit specific conveyor layouts

Applications

Conveyor loading zones
Impact beds and cradles
Transfer points
Mining and bulk material handling
Quarrying and processing plants
High-impact and high-tonnage applications

Supply

This product is manufactured by Reglin and supplied by SEC Business Group.

For sizing, compatibility, or pricing, please contact SEC Business Group.
