Conveyor Slider Bars

Low-Friction Conveyor Support

Reglin Conveyor Slider Bars provide smooth, low-friction support
for conveyor belts, reducing wear and improving efficiency.

Durable UHMWPE Construction

Manufactured from high-grade UHMWPE for excellent wear resistance
and long service life in demanding applications.

Flexible Installation Options

T-slot mounting and optional adaptor plates allow easy installation
on new or existing conveyor systems.

Description

Low-Friction Belt Support for Conveyor Systems

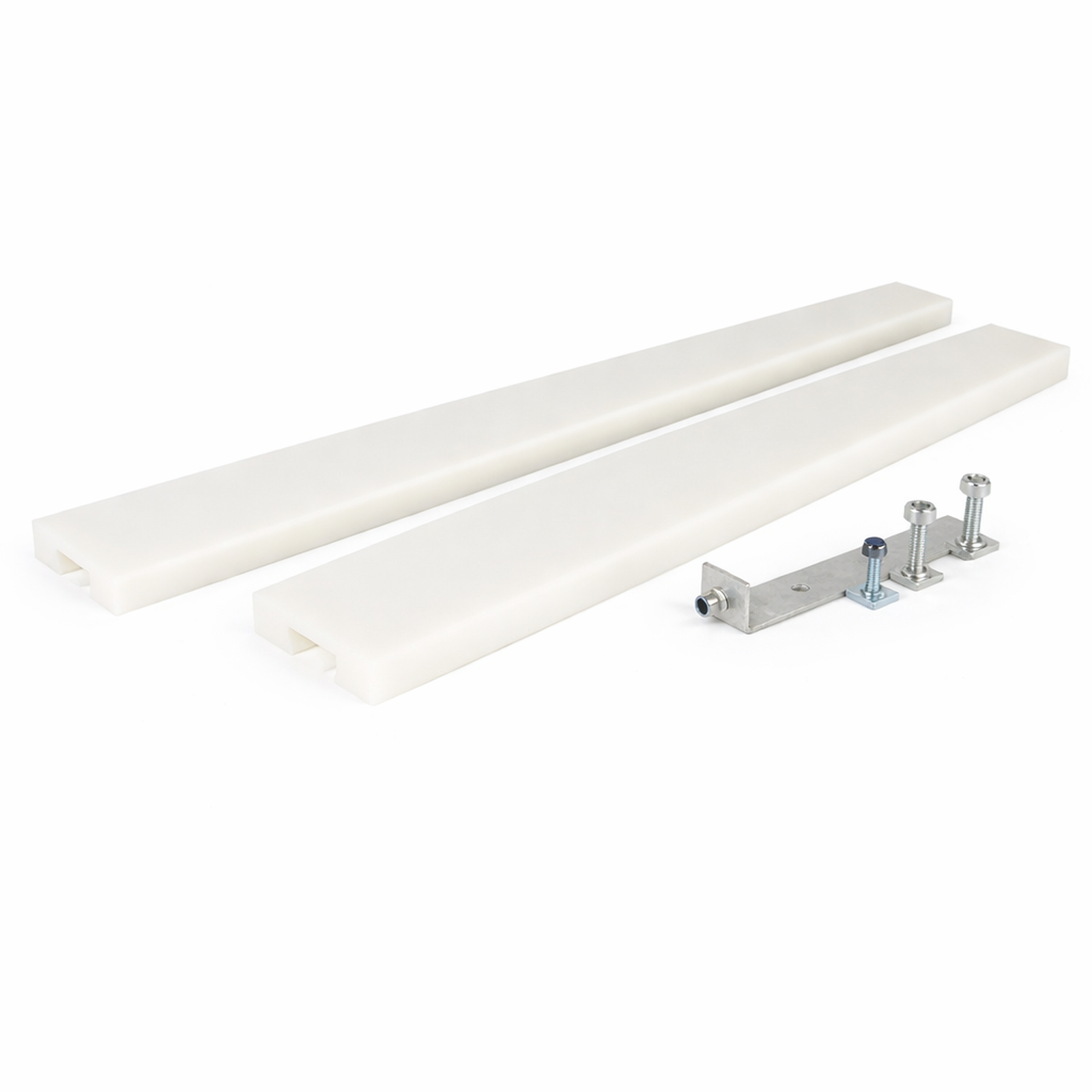

Conveyor Slider Bars are premium-grade UHMWPE support bars manufactured by Reglin, designed to provide low-friction sliding support for conveyor belts across a wide range of applications.

Manufactured from high-quality UHMWPE (Ultra High Molecular Weight Polyethylene), these bars offer excellent wear resistance and reduced surface friction, allowing conveyor belts to move smoothly even under load.

Improved Efficiency and Reduced Belt Wear

The low-friction surface helps minimise belt wear and reduce system drag, improving conveyor efficiency and lowering energy consumption.

SEC Business Group supplies Reglin slider bar solutions to support conveyor performance across mining, quarrying, and bulk material handling industries.

Features & Benefits

High-grade UHMWPE construction for long wear life.
Provides low-friction belt support for smooth operation.
Reduces belt wear and system drag.
Improves conveyor efficiency under load.
Profiled T-slot design for easy installation.
Compatible with T-bolt fastening systems.
Suitable for new installations or retrofit applications.
Lightweight and easy to handle.
Available with adaptor plates to suit standard trough rollers.
Manufactured by Reglin.
Supplied by SEC Business Group.

Technical Information

Property	Value	Standard
Polymer	UHMWPE
Colour	White
Specific Gravity	0.935	ASTM D297
Hardness	66 Shore D	ASTM D2240

Available Sizes

Reglin Conveyor Slider Bars and adaptor plates are available in a range of standard sizes. Slider bars can also be cut to length to suit specific conveyor or loading zone requirements.

Slider Bars

Part Number	Description	Weight (Each)
SB0100	25mm × 100mm × 2000mm C/W Routed T-Track Slot	3.8 kg
SB0150	25mm × 150mm × 2000mm C/W Routed T-Track Slot	6.2 kg

Adaptor Plates

Part Number	Description	Weight (Each)
SBA0600	Adaptor to suit 600mm belt width	10.2 kg
SBA0750	Adaptor to suit 750mm belt width	10.2 kg
SBA0900	Adaptor to suit 900mm belt width	10.2 kg
SBA1200	Adaptor to suit 1200mm belt width	10.2 kg

Product information sheets available on request.

Design & Installation

Integrated T-slot profiles for simple mounting
Compatible with T-bolt fastening systems
Optional adaptor plates for installation onto standard trough roller frames
Ideal for new conveyor builds or retrofit upgrades

Applications

Conveyor carry side support
Loading and transfer zones
High-wear or high-friction areas
Mining and bulk material handling
Quarrying and processing plants
Any application requiring low-friction belt support

Supply

This product is manufactured by Reglin and supplied by SEC Business Group.

For sizing, compatibility, or pricing, please contact SEC Business Group.
