The SEC Business Group Diagonal Plough is designed to remove spillage
and debris from the return side of conveyor belts before it reaches
tail pulleys or other critical components. Installed on a flat section
of the return belt, the plough deflects material away from the belt
surface to maintain a cleaner conveyor system.
By removing material before it reaches vulnerable areas,
the Diagonal Plough helps prevent material build-up on pulleys,
reduces belt damage, and lowers maintenance requirements,
improving overall conveyor reliability.
Available for belt widths from 450mm up to 2400mm with UHMW or FRAS
polyurethane blade options. Adjustable mounting brackets allow
installation above or below the conveyor structure to suit
different conveyor layouts.
Description
The SEC Business Group Diagonal Plough is designed to remove spillage
and debris from the return side of conveyor belts before material can
reach critical components such as tail pulleys or bend pulleys.
Installed on a flat and stable section of the return belt, typically
near the tail pulley or counterweight bend pulley, the plough helps
maintain a clean belt and protects conveyor equipment from unnecessary
wear and damage.
Often referred to as a return belt cleaner, the Diagonal Plough
deflects material away from the belt surface to prevent build-up
on pulleys and reduce the risk of belt damage. By removing spillage
before it reaches vulnerable components, the plough helps minimise
downtime, reduce maintenance requirements, and improve overall
conveyor reliability.

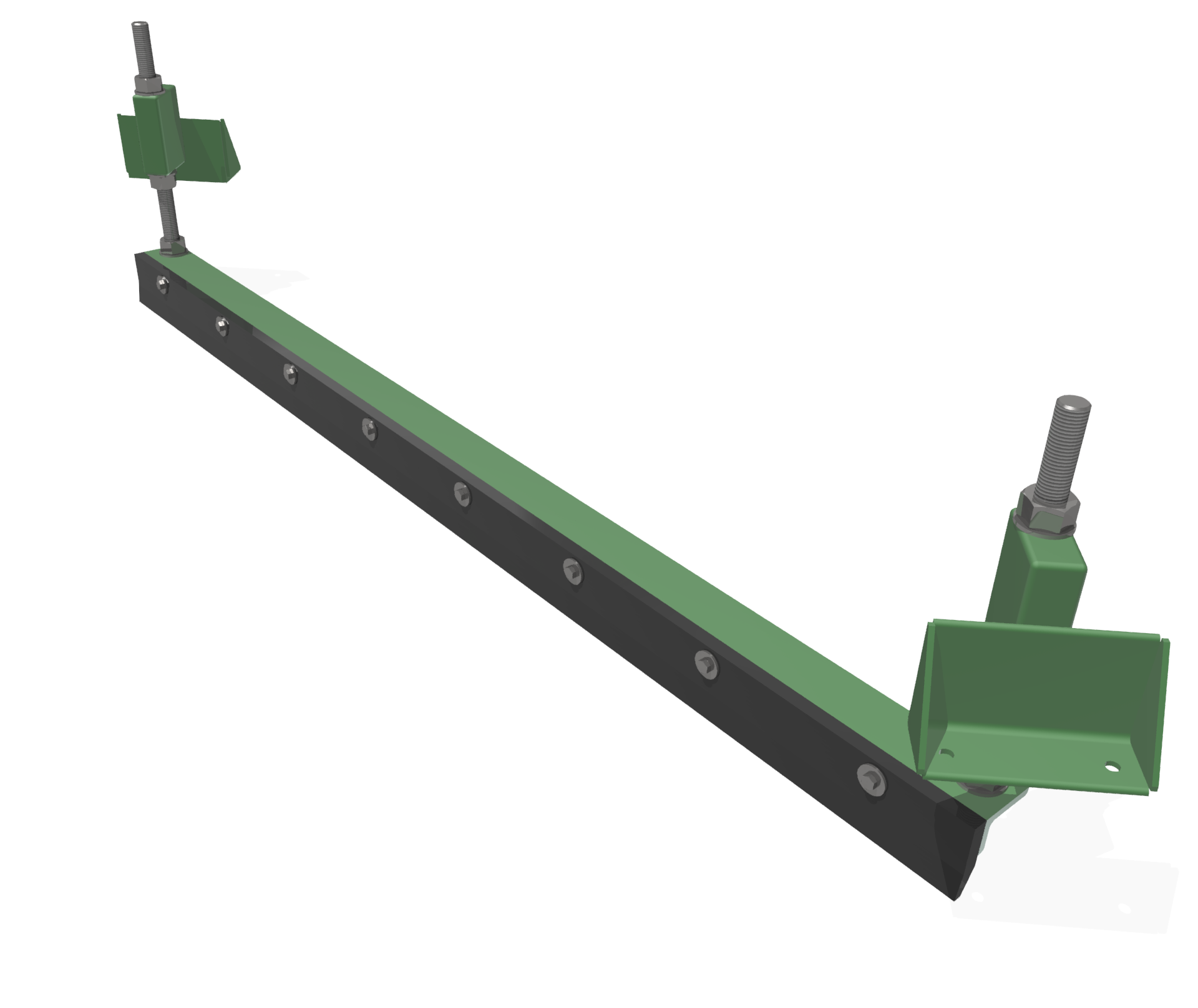

The system consists of mounting brackets with adjustable mounting shafts,
a durable plough frame, and a bolt-on polyurethane blade. The blade
measures 100mm in height with 50mm of usable blade, delivering effective
cleaning while maintaining long service life.
While the Diagonal Plough can tolerate limited reversing belt movement,
it is not designed for continuous reversing operation. For conveyors that
regularly run in both directions, a dedicated reversing plough should
be considered.
In applications where larger material may pass along the return belt,
an optional Stone Guard can be installed. The Stone Guard helps prevent
large objects from passing over the plough frame and reaching the pulley
area, providing additional protection for conveyor components.
Contact SEC Business Group for assistance selecting the correct
return belt cleaner for your conveyor system.
| Belt Width (mm) | Item Code |
|---|---|
| 450 – 750 | 231201 |
| 900 – 1050 | 231202 |
| 1200 – 1500 | 231203 |
| 1600 – 2000 | 231204 |
| 2100 – 2400 | 231205 |
