SEC Business Group Flat Return Idlers provide reliable support for
the return strand of conveyor belts, helping maintain belt alignment
and reducing belt sag between idler stations.
Manufactured using CNC laser cutting and robotic welding with
galvanised frames supplied as standard for corrosion resistance
and long service life.
Compatible with steel, composite, or rubber disc rollers to suit
a wide range of mining, quarrying, recycling, and bulk materials
handling applications.
Description
SEC Business Group Flat Return Idlers are engineered and fabricated
to meet or exceed industry standards and customer specifications.
Manufactured using advanced production techniques including CNC
laser cutting and robotic welding, these idler frames provide high
levels of strength, precision, and durability.
All welding is completed in accordance with AS1554.1 SP welding
standards, ensuring consistent quality and reliable performance
in demanding conveyor environments.
Flat return idlers are designed to support the return side of the
conveyor belt, providing stable belt guidance as the belt travels
back towards the loading point.
Positioned along the return strand of the conveyor, they help
maintain correct belt alignment and reduce belt sag between
idler stations.
These idlers are suitable for a wide range of materials handling
applications, including mining, quarrying, bulk materials handling,
recycling, and industrial processing systems.

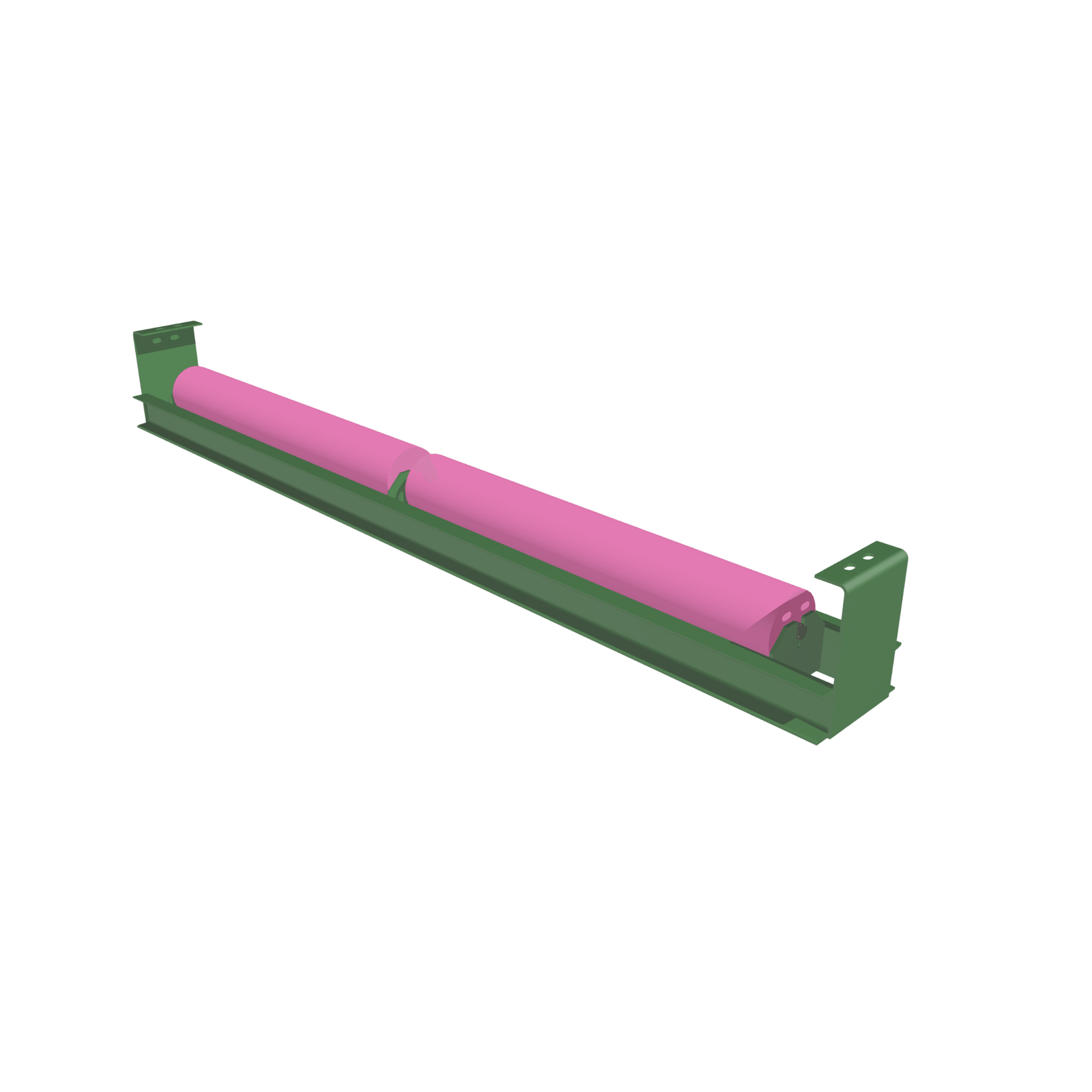

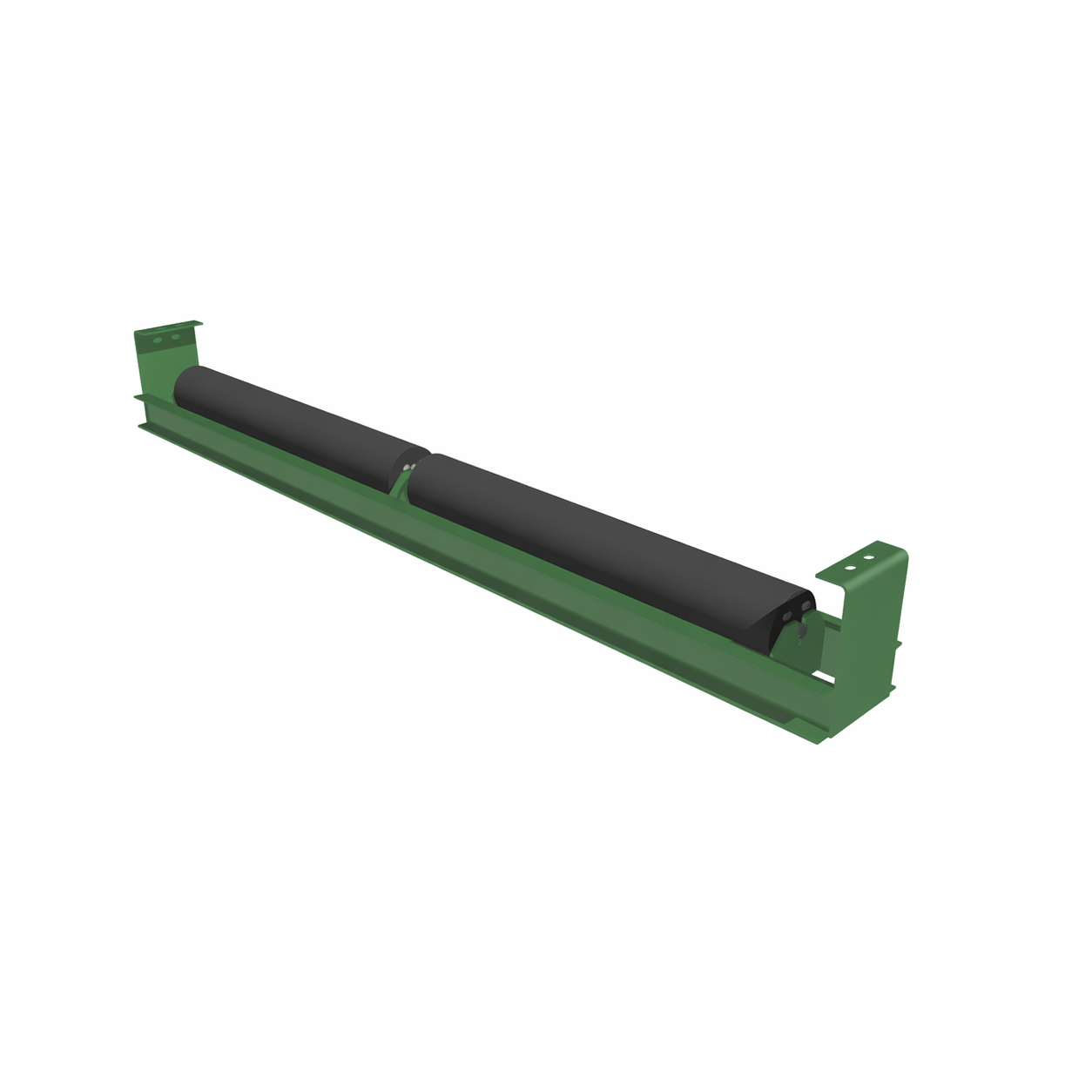

Flat return idlers can be supplied with steel rollers, composite
rollers, or rubber disc rollers depending on the application
requirements and operating conditions.
Frames are supplied galvanised as standard for corrosion resistance
and durability in harsh environments, with powder-coated options
available if required.
SEC Business Group Flat Return Idlers are available to suit belt
widths from 450mm up to 3000mm, with custom designs available to
suit specific conveyor layouts or roller configurations.
