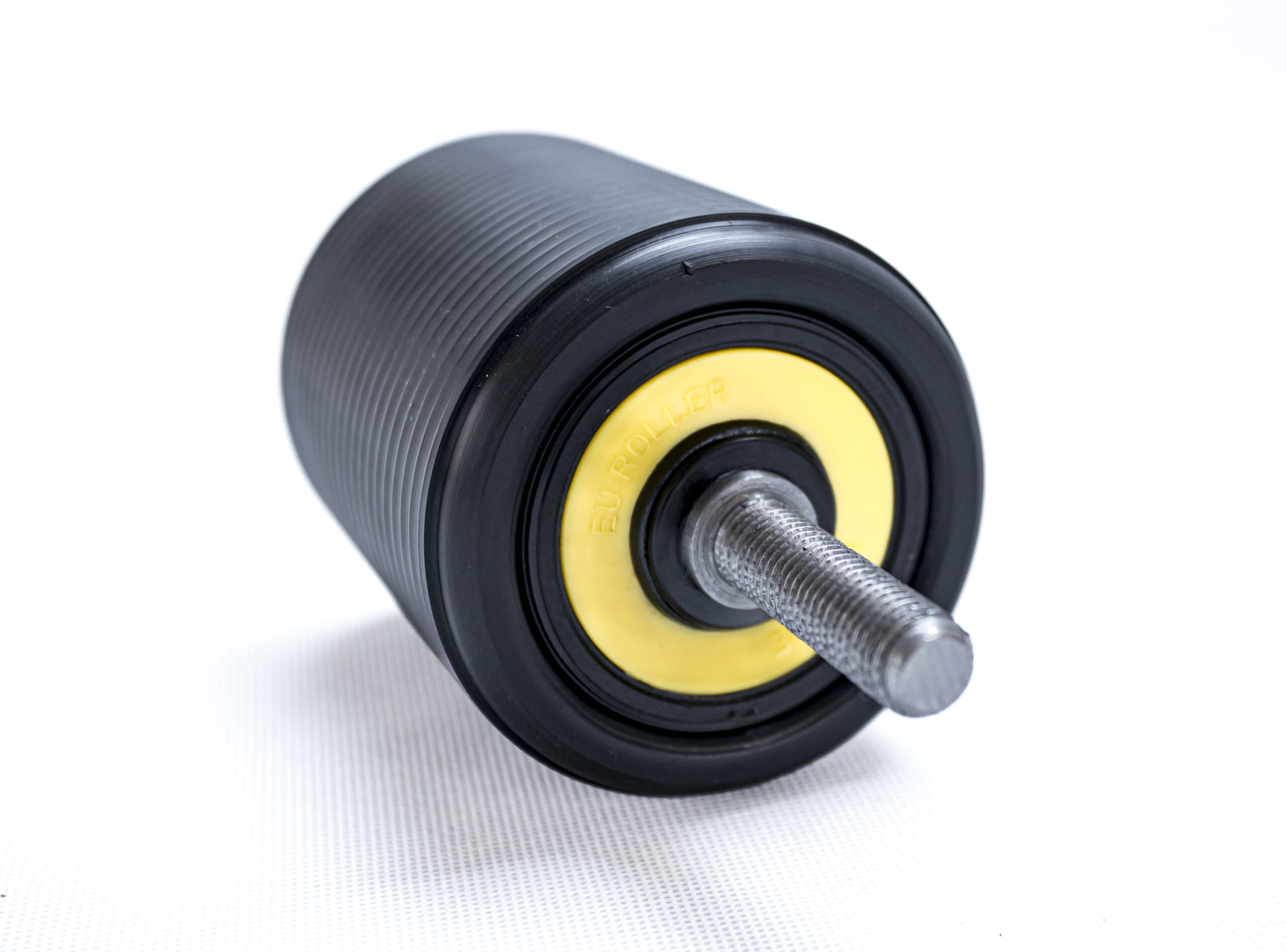

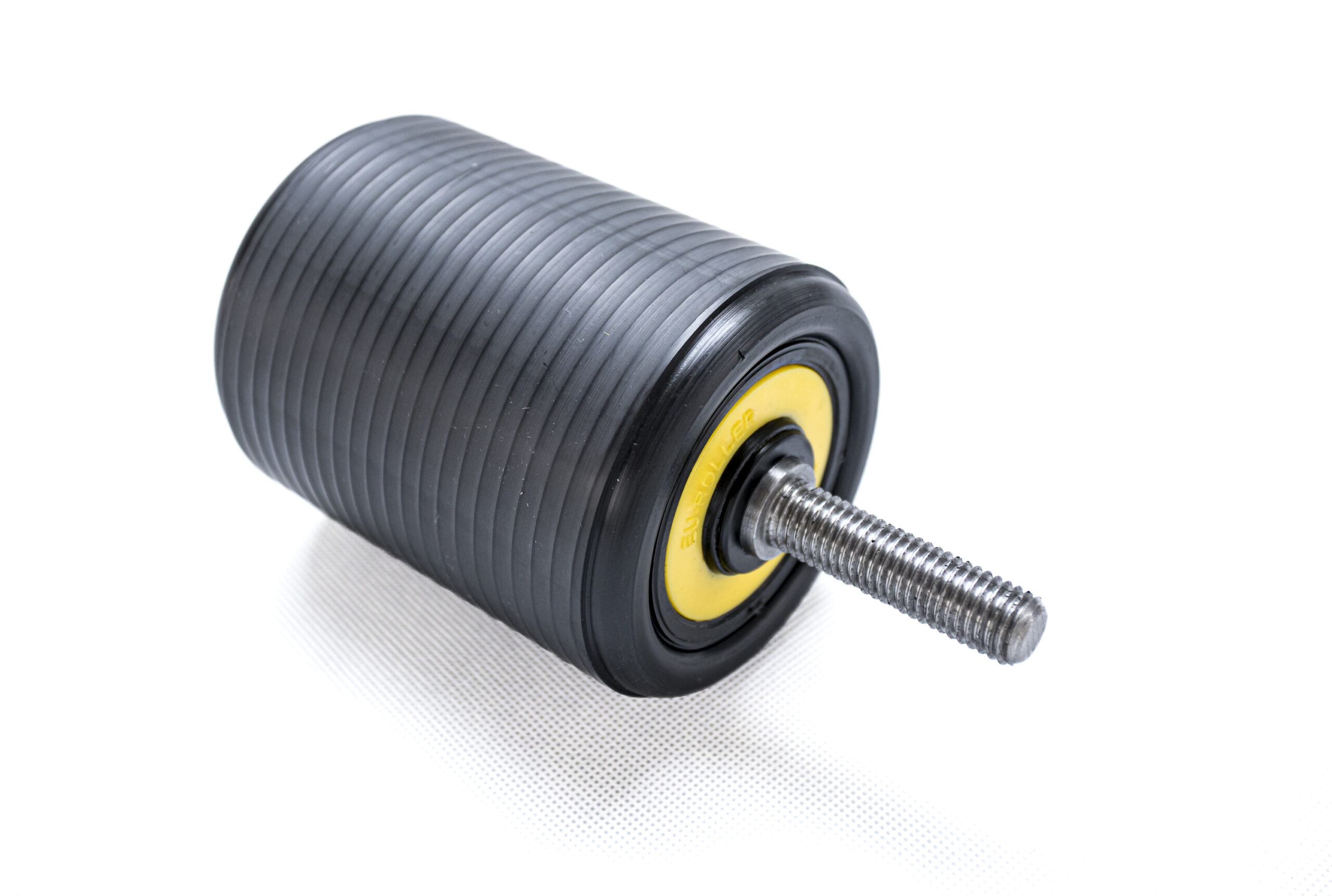

EU-Roller HDPE Side-Guide Rollers are designed to help guide conveyor belts back toward the centreline, improving belt tracking and reducing the risk of side movement in demanding conveyor applications.
Used as vertical guide rollers, they help support belt alignment when the conveyor belt drifts side to side, improving running stability and reducing the risk of belt damage.
Manufactured with an HDPE roller body and durable bearing protection, these rollers are designed for reliable performance in harsh, abrasive, and outdoor conveyor environments.
Description
HDPE Guide Rollers for Improved Belt Tracking and Conveyor Protection
EU-Roller HDPE Side-Guide Rollers are designed to help control side-to-side belt movement and improve conveyor belt tracking in demanding material handling applications. Used as vertical guide rollers, they help support belt alignment when the belt drifts away from the centreline, improving running stability and reducing the risk of damage to the conveyor belt and structure. :contentReference[oaicite:1]{index=1}
These rollers are commonly used on suitable transoms, including self-centralising transoms that rotate automatically when the belt deviates from the centre of the conveyor line. In these installations, the guide rollers help return the belt to a more stable running position parallel to the centre of the conveyor frame. :contentReference[oaicite:2]{index=2}
EU-Roller HDPE Side-Guide Rollers are engineered to perform in extreme temperatures, harsh environments, and highly corrosive, chemical, or coastal conditions that typically cause damage to conventional rollers. The roller body is manufactured from HDPE and supported by an internal steel tube, offering excellent resistance to abrasion, sun exposure, impact, and demanding outdoor operating conditions. :contentReference[oaicite:3]{index=3}
These rollers incorporate EU-Roller’s HDPE bearing housing system together with effective sealing and lubrication protection to help prolong bearing life and reduce maintenance requirements. Their non-corrosive and watertight design also helps minimise conveyor belt damage while improving long-term operating reliability. :contentReference[oaicite:4]{index=4}
| Outer Diameter | Roller Length |
|---|---|
| 89mm – 152mm | 150mm – 350mm |
