Heavy-Duty Torsion Ploughs

Reliable Return-Side Protection for Conveyor Systems

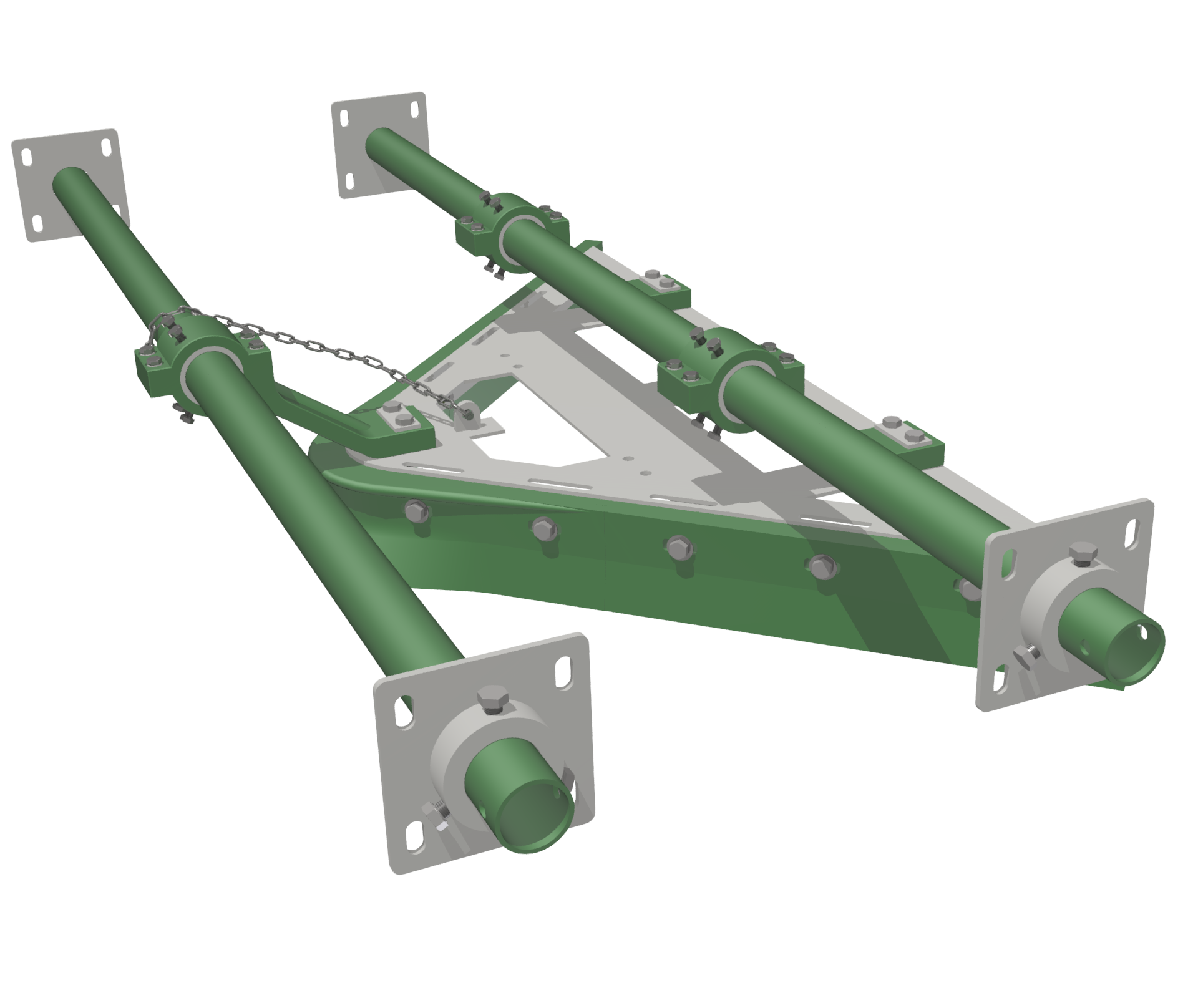

The SEC Business Group Torsion Plough is engineered for installation on the return side of the conveyor belt
to remove rocks, debris, and carryback material before they reach the tail pulley or take-up pulleys.
By intercepting material early, the plough protects the belt, pulley, and lagging from premature wear and costly damage.

The torsion arm system applies controlled, constant pressure to the polyurethane blades,
ensuring effective material deflection while minimising blade wear.
This balanced pressure allows reliable performance without excessive strain on the conveyor system.

A key design feature is the two-piece clamp arrangement, eliminating the need to cut or replace poles if a torsion arm seizes.
This significantly reduces maintenance time, lowers labour costs, and improves overall serviceability.

Available in both Standard Duty and Heavy Duty configurations, the Torsion Plough is supplied
in galvanised mild steel or stainless steel construction to suit various operating environments.

Optional Stoneguard Protection

In applications where material may bounce along the return belt, an optional Stoneguard can be fitted
between the polyurethane blade and steel frame. The Stoneguard forms a raised shield that repels
stones and debris that might otherwise pass over the plough and cause damage to downstream components.

Compatible with:

• SEC Business Group Torsion Ploughs
• HD Floating Diagonal Ploughs
• Fixed Diagonal Ploughs

Features & Benefits

• Protects the belt, pulley, and lagging from premature wear and damage.
• Removes material from the return side before it reaches critical components.
• Torsion arm applies controlled, constant pressure to polyurethane blades.
• Two-piece clamp arrangement simplifies maintenance and reduces downtime.
• Available in Standard Duty or Heavy Duty models.
• Supplied in galvanised mild steel or stainless steel construction.
• Standard Duty suitable for belt widths 600mm – 2400mm.
• Heavy Duty suitable for belt widths 900mm – 2600mm.

Applications

• Coal
• Iron Ore
• Hard Rock
• Heavy Metals
• Sand & Gravel
• Recycling
• Power Generation
• Steel Mills

Specification Table – Heavy Duty (Mild Steel or Stainless Steel)
