PHS Secondary Belt Cleaners

High-Performance Secondary Belt Cleaning for Demanding Applications

The PHS (P High Speed) Series of secondary belt cleaners is engineered to tackle demanding conveyor cleaning applications where reliable secondary cleaning performance is essential.

Designed to work in conjunction with a primary belt cleaner, PHS cleaners are typically installed on a flat, stable section of belt near the head pulley or a flat return / hold-down roller to maximise material removal and improve conveyor cleanliness.

Uncompromising Cleaning Performance

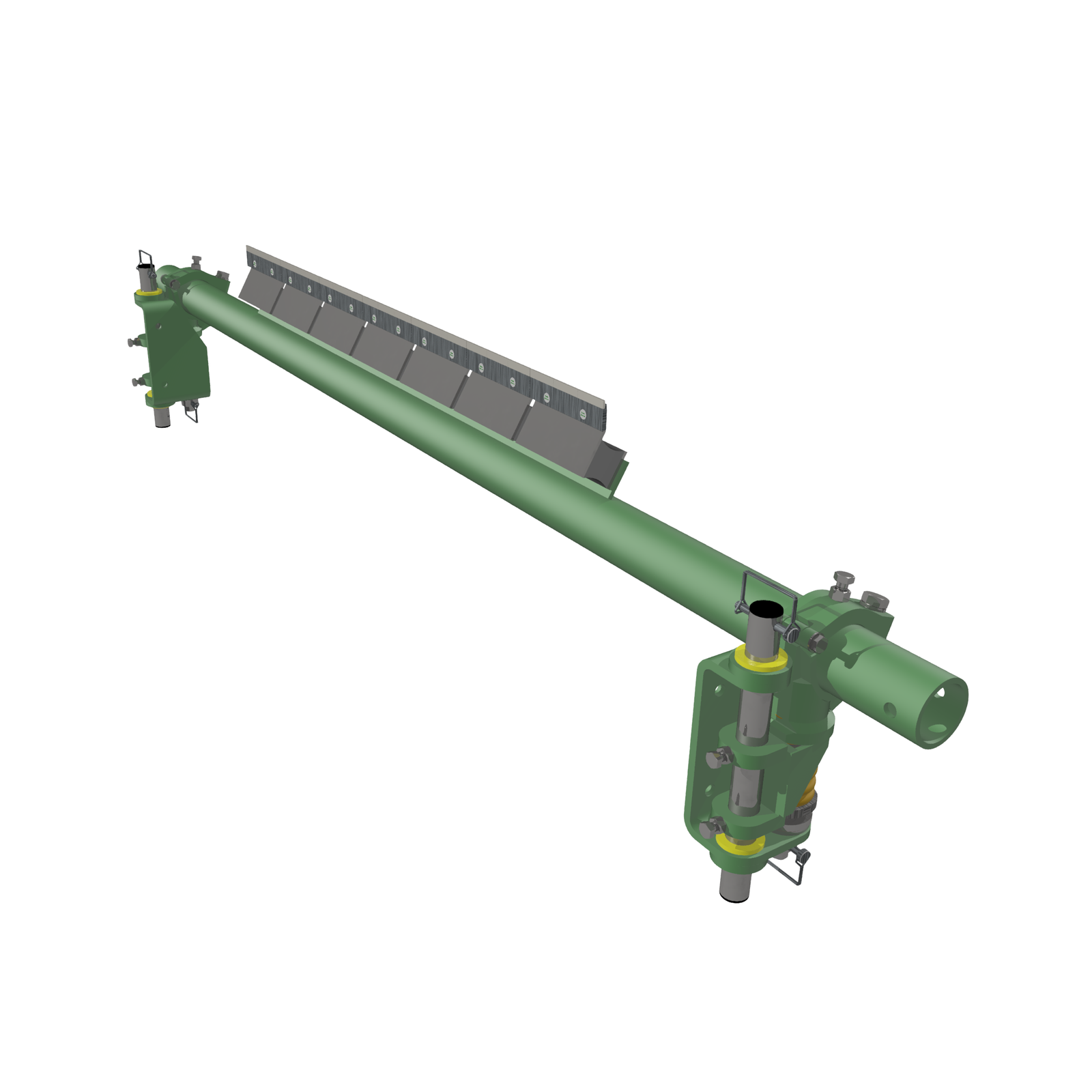

Each PHS cleaner features a pair of side assemblies, a robust pole, and a series of 150mm wide blades.

These blades combine a durable rubber cushion with a high-performance tungsten tip, providing effective cleaning
on high-speed belts and in abrasive operating conditions.

While the PHS cleaner can be used in reversing belt applications such as trippers, it is not suitable for belts where material flows in both directions.

For especially difficult applications, multiple PHS cleaners can be installed in close series to further improve cleaning efficiency.

Tailored for Your Application

The PHS Series is available in multiple configurations to suit different installation requirements and maintenance preferences.

• PHS SST (Secondary Spring Tensioner) – incorporates a spring tensioner to extend the period between adjustments, especially useful in high tip wear applications.
• PHS SST-I (Inverted Secondary Spring Tensioner) – designed for applications where mounting bracket space is limited below the pole.
• PHS BT (Bolt Tension) – provides reliable and consistent tensioning for a wide range of secondary cleaning applications.

Revolutionary Weight Savings with Combi Lite™

The Combi Lite™ pole is available across the PHS cleaner range, helping improve installation efficiency and reduce structural loading on conveyor systems.

• Up to 60% lighter than equivalent steel poles
• Reduces localised stresses on conveyor structures
• Simplifies handling and installation
• Compatible with H-LITE™, P-LITE™, and PHS-LITE™ belt cleaners
• Helps reduce inventory costs through shared component compatibility

Built to Last

PHS Belt Cleaners are available to suit belt widths from 450mm to 3000mm and can be supplied in either stainless steel or mild steel construction to match specific site
and operating requirements.

Features & Benefits

• Designed for high-performance secondary belt cleaning.
• Typically installed near the head pulley or hold-down roller on a flat belt section.
• 150mm wide blades with durable rubber cushions and tungsten tips.
• Suitable for high-speed belts and abrasive materials.
• Three tip sizes available: 10mm, 15mm, and 25mm.
• Tried and tested cushion design for consistent cleaning performance.
• Cost effective due to consistent cushion and tip life.
• Can be installed in limited space and difficult applications.
• Available in spring tension, inverted spring tension, and bolt tension configurations.
• Compatible with Combi Lite™ lightweight pole technology.
• Available in stainless steel or mild steel construction.
• Suitable for belt widths from 450mm to 3000mm.
• High-quality standard components throughout.

Supply

For cleaner selection, sizing, or application advice, contact SEC Business Group.
