Picking Carry Idlers

Reliable Belt Support for Picking and Feeding Applications

SEC Business Group Picking Carry Idler Frames are engineered and fabricated
to meet or exceed industry standards and specific customer requirements.
Manufactured using advanced production techniques including CNC laser
cutting and robotic welding, these frames deliver high levels of strength,
accuracy, and durability.

All welding is performed in accordance with AS1554.1 SP welding standards,
and strict quality management systems ensure consistent tolerance and
manufacturing quality across every frame.

Designed for Picking and Feeding Applications

Picking carry idlers are designed for conveyor applications where a deep
troughed belt profile is not required. These frames are commonly used in
belt feeders, recycling facilities, and certain food processing conveyors
where material on the belt needs to remain accessible for sorting or
manual processing.

The configuration provides stable belt support while allowing operators
clear access to the conveyed material.

Flexible Roller Configurations

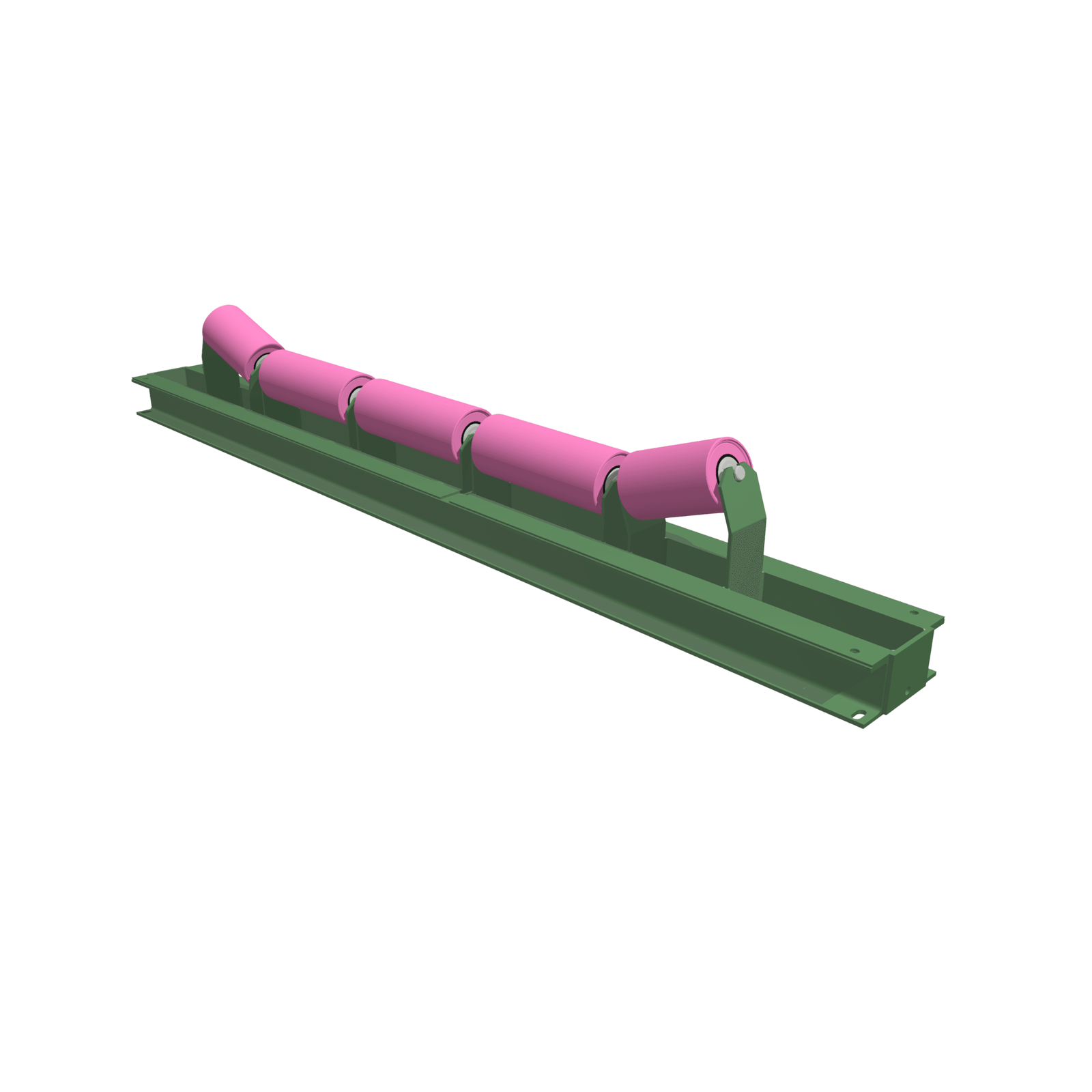

Picking carry idler frames are available in 3-roll, 4-roll, or 5-roll
configurations. They typically feature narrower wing rollers compared
to the centre roller, allowing effective belt support while maintaining
improved access to the belt surface.

Depending on the application requirements, frames can be supplied with
standard rollers, impact rollers, or a combination of both to suit
specific loading conditions.

Durable Construction and Supply Options

Frames are supplied galvanised as standard for corrosion resistance,
with powder-coated options available where additional surface protection
or site colour matching is required.

SEC Business Group Picking Carry Idler Frames are available to suit belt
widths from 450mm up to 3000mm. Custom designs can also be produced to
accommodate specific belt widths, roller types, or conveyor configurations.

A wide range of idler frame types and sizes are held in stock,
allowing fast supply when required.

Features & Benefits

• Designed for applications where deep troughing is not required.
• Ideal for belt feeders, recycling systems, and food processing conveyors.
• Available in 3-roll, 4-roll, or 5-roll configurations.
• Narrow wing roller design improves access to material on the belt.
• Compatible with standard rollers, impact rollers, or mixed configurations.
• Manufactured using CNC laser cutting and robotic welding.
• Welding completed to AS1554.1 SP welding standards.
• Galvanised frames supplied as standard, with powder-coated options available.
• Available to suit belt widths from 450mm to 3000mm.
• Custom designs available to suit specific conveyor requirements.
