R-Line 38 Premium Lining Rubber

Premium Slurry Lining Rubber

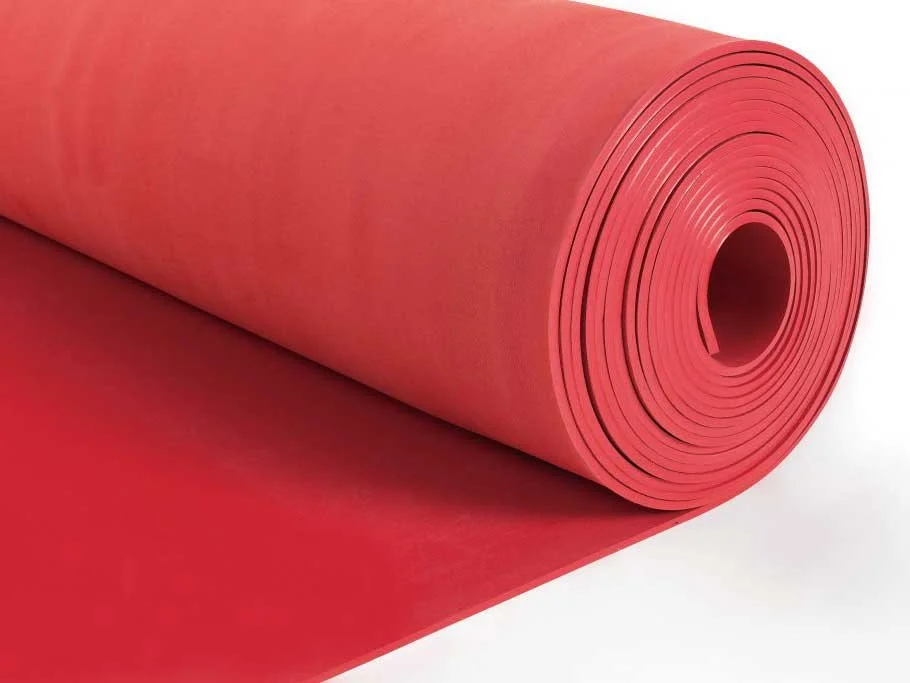

R-Line 38 Premium Lining Rubber is a highly flexible natural rubber lining designed for slurry abrasion and corrosion protection.

Built for Wet Abrasion Environments

Its soft 38 Duro compound provides excellent wear resistance, strong tear strength, and reliable bonding performance on steel and rubber surfaces.

Reglin Product Supplied by SEC Business Group

Available in sheet, strip, lining kit, and custom fabricated formats for mining, quarrying, and mineral processing applications.

Description

High Wear-Resistant Rubber Lining for Slurry and Abrasion Protection

R-Line 38 Premium Lining Rubber is a premium-grade 38 Duro natural rubber lining engineered for wet slurry, fine particle abrasion, and corrosion protection in demanding industrial environments.

Manufactured from a highly elastic natural rubber compound, this lining delivers exceptional abrasion resistance, flexibility, and durability, making it ideal for protecting steel equipment
in mining, quarrying, and mineral processing applications.

The material features a pre-buffed backing, ensuring strong adhesion when bonded to steel or rubber surfaces using standard rubber adhesive systems.

Designed for Slurry and Fine Particle Wear Protection

SEC Business Group supplies high-performance lining solutions designed to extend equipment life and reduce maintenance costs.

R-Line 38 is well suited to wet slurry and abrasion-heavy environments where flexibility, strong bonding, and long-term wear resistance are essential.

Features & Benefits

Premium natural rubber compound (NR).
Excellent resistance to wet slurry and fine particle abrasion.
Superior flexibility and elasticity.
High cut and tear resistance.
Good resistance to mild chemicals including acids and alkalis.
Pre-buffed backing for strong adhesive bonding.
Compatible with Neoprene-based rubber adhesives.
Designed for long-term wear protection.
Easy to install and bond to steel or rubber surfaces.
Available in sheets, strips, and custom-cut components.
Supplied by SEC Business Group.

Applications

Industrial Equipment Lining

Chutes
Tanks and pipework
Valves and pumps
Cyclones
Launders
Flotation cells
Sumps and underpans
Screen components
Trommels
Magnetic separator drums

General Wear Protection

Mill seals
Pipe repair bandages
Loading and discharge socks
Transfer and joining sleeves
Wear curtains
Sealing applications

Performance Advantages

Excellent abrasion resistance in slurry environments.
Highly flexible for easy installation and surface conformity.
Strong bonding performance with buffed backing.
Extends equipment life and reduces maintenance downtime.

Technical Information

Property	Value	Standard
Polymer	NR
Colour	Pink with buffed back
Specific Gravity	0.97	ASTM D297
Hardness	38° ± 5° Shore A	ASTM D2240
Tensile Strength	22 MPa (min)	ASTM D412
Elongation @ Break	750% (min)	ASTM D412
Abrasion	75 mm³ (max) @ 5N	ASTM D5963
Temperature Range	-20°C to +70°C
Tear Strength	35 N/mm (min)	ASTM D624

Available Sizes

Part Number	Description	Weight (Per L/M)
REGBB3803	3mm x 1200mm (10 L/M Rolls)	3.8 kgs
REGBB38031500	3mm x 1500mm (10 L/M Rolls)	3.8 kgs
REGBB3806	6mm x 1200mm (10 L/M Rolls)	7.5 kgs
REGBB38061500	6mm x 1500mm (10 L/M Rolls)	9.4 kgs
REGBB3810	10mm x 1200mm (10 L/M Rolls)	12.5 kgs
REGBB38101500	10mm x 1500mm (10 L/M Rolls)	15.7 kgs
REGBB3812	12mm x 1200mm (10 L/M Rolls)	14.8 kgs
REGBB38121500	12mm x 1500mm (10 L/M Rolls)	18.5 kgs
REGBB38201500	20mm x 1500mm (10 L/M Rolls)	30.9 kgs

Custom sizes and fabricated components available on request.

Custom Options

R-Line 38 can be supplied as:

Equipment lining kits
Custom-cut wear panels
Pipe lining strips
Abrasion-resistant sealing components
Repair bandages and sleeves
Engineered lining systems

Supply

This product is supplied by SEC Business Group.

For technical support, installation guidance, or custom fabrication, contact SEC Business Group.
