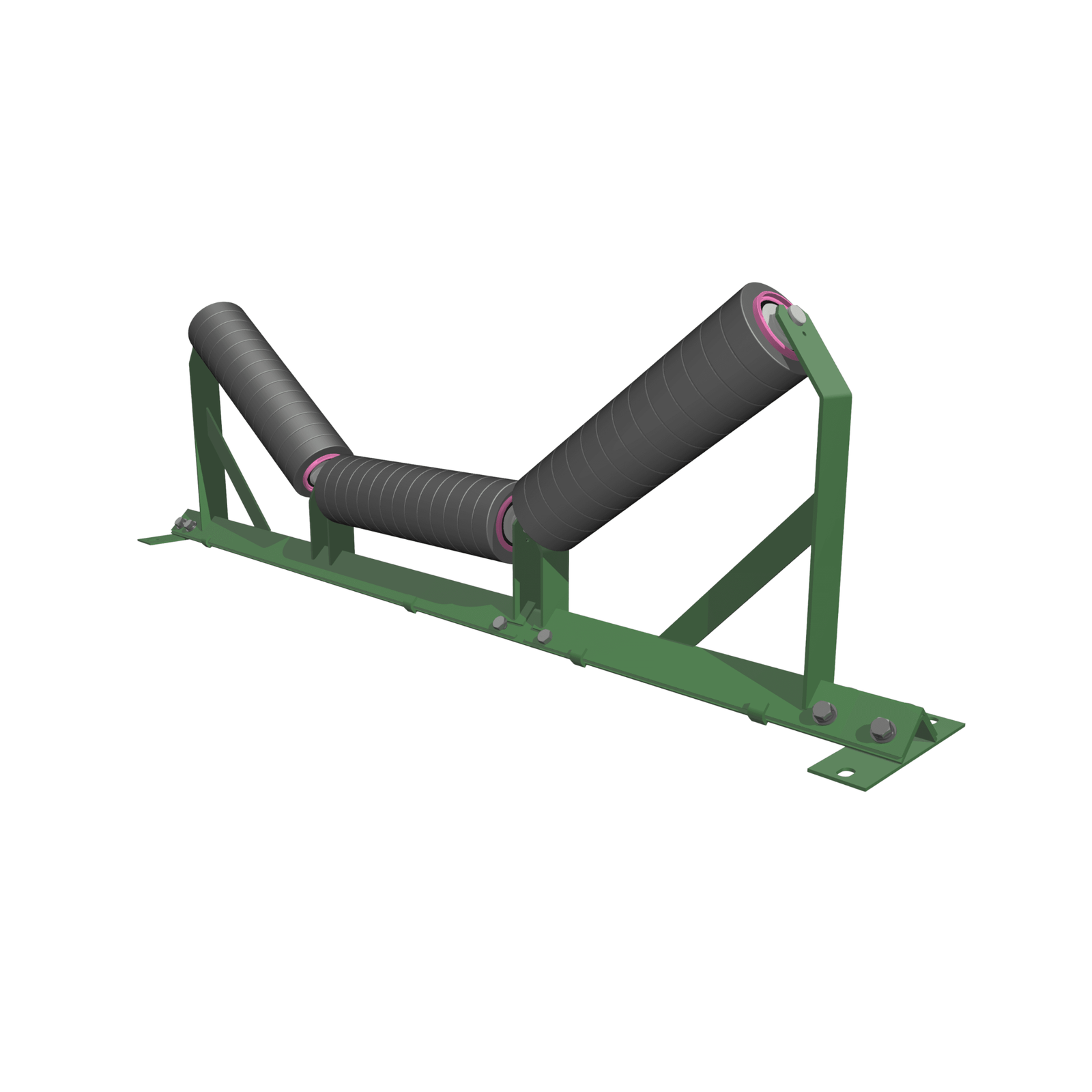

Retractable Impact Idlers

Efficient Roller Maintenance for Impact Zone Applications

SEC Business Group Retractable Impact Idler Frames are engineered and fabricated
to meet or exceed industry standards and customer specifications.
Manufactured using advanced production techniques including CNC laser
cutting and robotic welding, these frames deliver excellent strength,
precision, and durability.

All welding is completed in accordance with AS1554.1 SP welding
standards, ensuring consistent quality and tight tolerance control.

Designed for Restricted Conveyor Areas

Retractable impact idlers are designed for use in impact zones or other
conveyor sections where skirts, hungry boards, or structural components
restrict belt movement, making roller maintenance difficult.

These frames improve maintenance safety and efficiency by allowing idler
frame elements to retract away from the belt centreline, providing clear
access for roller replacement without requiring the belt to be lifted.

Flexible Idler Configurations

SEC Business Group Retractable Impact Idlers are available in 3-roll
or 5-roll configurations and can be manufactured with different
roller width arrangements, such as centre rollers with different
widths to wing rollers depending on conveyor design requirements.

Versatile Application Options

While retractable frames are typically used with impact rollers in
loading and transfer zones, they can also be fitted with standard
rollers in applications where belt lifting is restricted by skirting
or other conveyor structures.

Durable Construction and Supply Options

Frames are supplied galvanised as standard for corrosion resistance
and durability in harsh operating environments, with powder-coated
options available if required.

SEC Business Group Retractable Impact Idler Frames are available to
suit belt widths from 450mm up to 3000mm, and custom designs can
be manufactured to suit specific conveyor layouts, roller
configurations, and operational requirements.

A wide range of idler frame types and sizes are held in stock
for fast supply.

Features & Benefits

• Designed for impact zones and areas with restricted belt movement.
• Retractable frame design allows rollers to move away from the belt centreline for maintenance.
• Improves safety and efficiency during roller replacement.
• Available in 3-roll or 5-roll configurations.
• Custom roller width configurations available.
• Compatible with impact rollers or standard rollers.
• Ideal for applications where skirting or structural components limit belt movement.
• Manufactured using CNC laser cutting and robotic welding.
• Welding completed to AS1554.1 SP welding standards.
• Galvanised frames supplied as standard, with powder-coated options available.
• Available for belt widths from 450mm to 3000mm.
