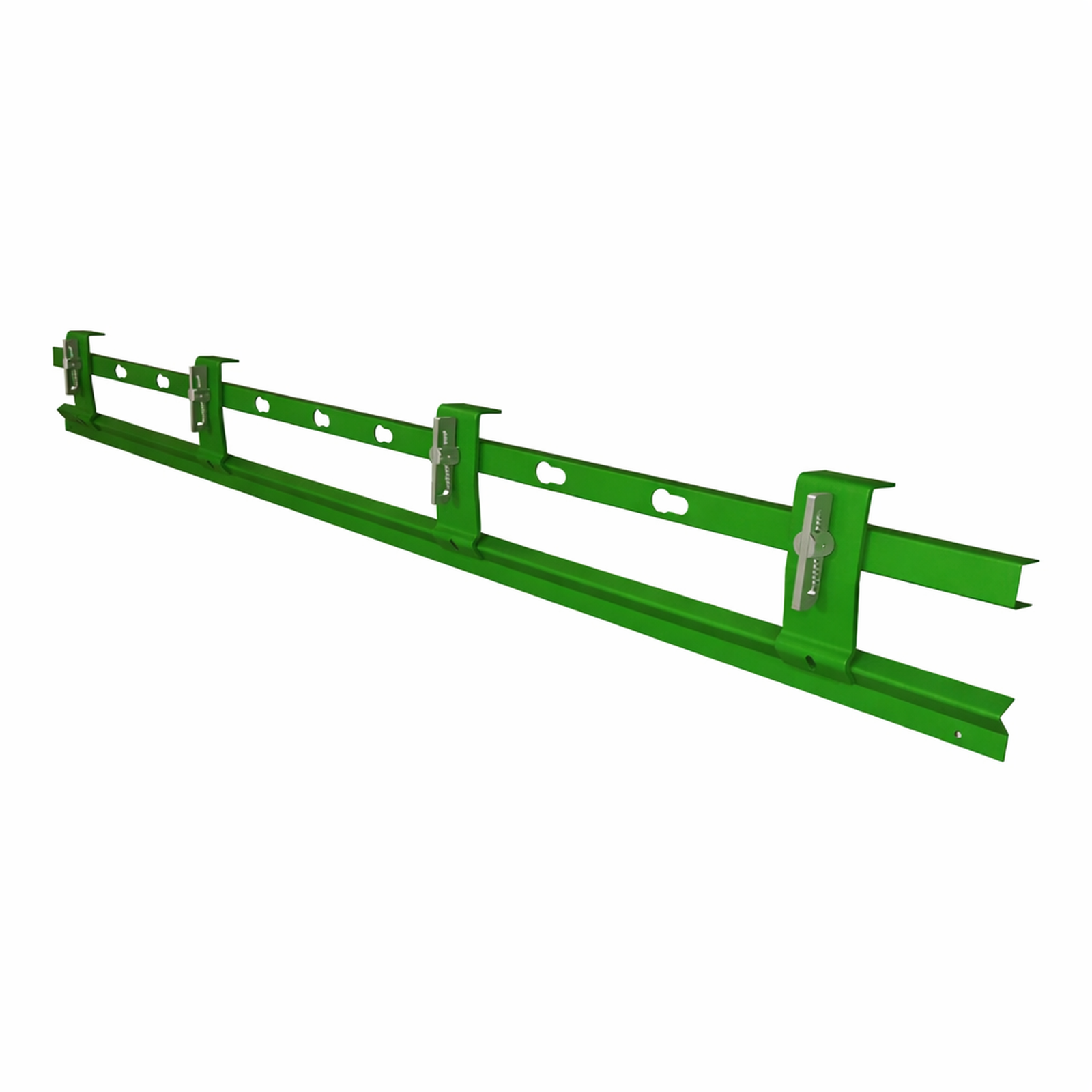

Skirt Clamp System

Chute Wear and Sealing Solution

Chute Skirt Liners are premium rubber liners designed to protect conveyor loading zones while improving material containment.

Reduced Spillage and Dust

Flexible 60 Duro rubber and bevelled edge design provide effective sealing against the belt, reducing spillage and dust emissions.

Durable and Easy to Install

Available with steel backing or aluminium T-track systems for fast installation and long service life in high-wear applications.

Description

Wear Protection and Sealing Solutions for Conveyor Loading Zones

Chute Skirt Liners are premium-grade wear-resistant and impact-resistant rubber liners manufactured by Regline Rubber, designed to protect conveyor loading zones and improve material containment.

Manufactured from a highly elastic 60 Duro rubber compound, these liners provide excellent resistance to sliding abrasion and large particle impact, making them ideal for demanding bulk material handling applications.

Improved Containment and Wear Protection

Installed at discharge points on conveyor chutes, skirt liners act as both a wear liner and sealing solution, protecting steel surfaces while reducing material spillage and dust emissions.

Their flexible rubber construction allows effective sealing against the conveyor belt, improving containment and reducing material loss.

Design & Installation

Chute Skirt Liners are designed for easy installation onto existing chute structures and skirt boards using mechanical fastening systems.

Steel Backing

Vulcanised steel plate for maximum strength and stability
Ideal for high-impact applications

Aluminium T-Track

Lightweight design with embedded aluminium T-track
Allows quick installation using T-bolt fastening
Ideal for fast maintenance and replacement

Available configurations include:

Single bevel edge
Parallel bevels
Opposite bevels for reversible use

Features & Benefits

Premium 60 Duro rubber compound for durability and flexibility.
Excellent resistance to abrasion and high-impact loading.
Protects chute walls and skirt boards from wear.
Bevelled edge design improves sealing against the conveyor belt.
Reduces material spillage and dust emissions.
Adjustable to create an effective containment seal.
Available with steel backing or aluminium T-track systems.
Suitable for heavy-duty and high-wear applications.
Manufactured by Regline Rubber.
Supplied by SEC Business Group.

Applications

Conveyor loading chutes
Transfer points
Mining and bulk material handling
Quarrying and mineral processing
Dust control and material containment systems

Technical Information

Property	Value	Standard
Polymer	NR/SBR
Colour	Black
Specific Gravity	1.10	ASTM D297
Hardness	60° ± 5° Shore A	ASTM D2240
Abrasion	90 mm³ (max) @ 10N	ASTM D5963
Tensile Strength	20 MPa (min)	ASTM D412
Elongation @ Break	450% (min)	ASTM D412
Tear Strength	80 N/mm (min)	ASTM D624
Temperature Range	-20°C to +70°C

Available Sizes

Chute Skirt Liners are custom engineered to suit your application and can be:

Cut to any profile
Manufactured to drawings
Supplied ready for installation
Designed for easy maintenance

Supply

This product is manufactured by Regline Rubber and supplied by SEC Business Group.

For sizing, design assistance, or pricing, please contact SEC Business Group.
