Spring Diagonal Ploughs

Reliable Return-Side Cleaning and Conveyor Protection

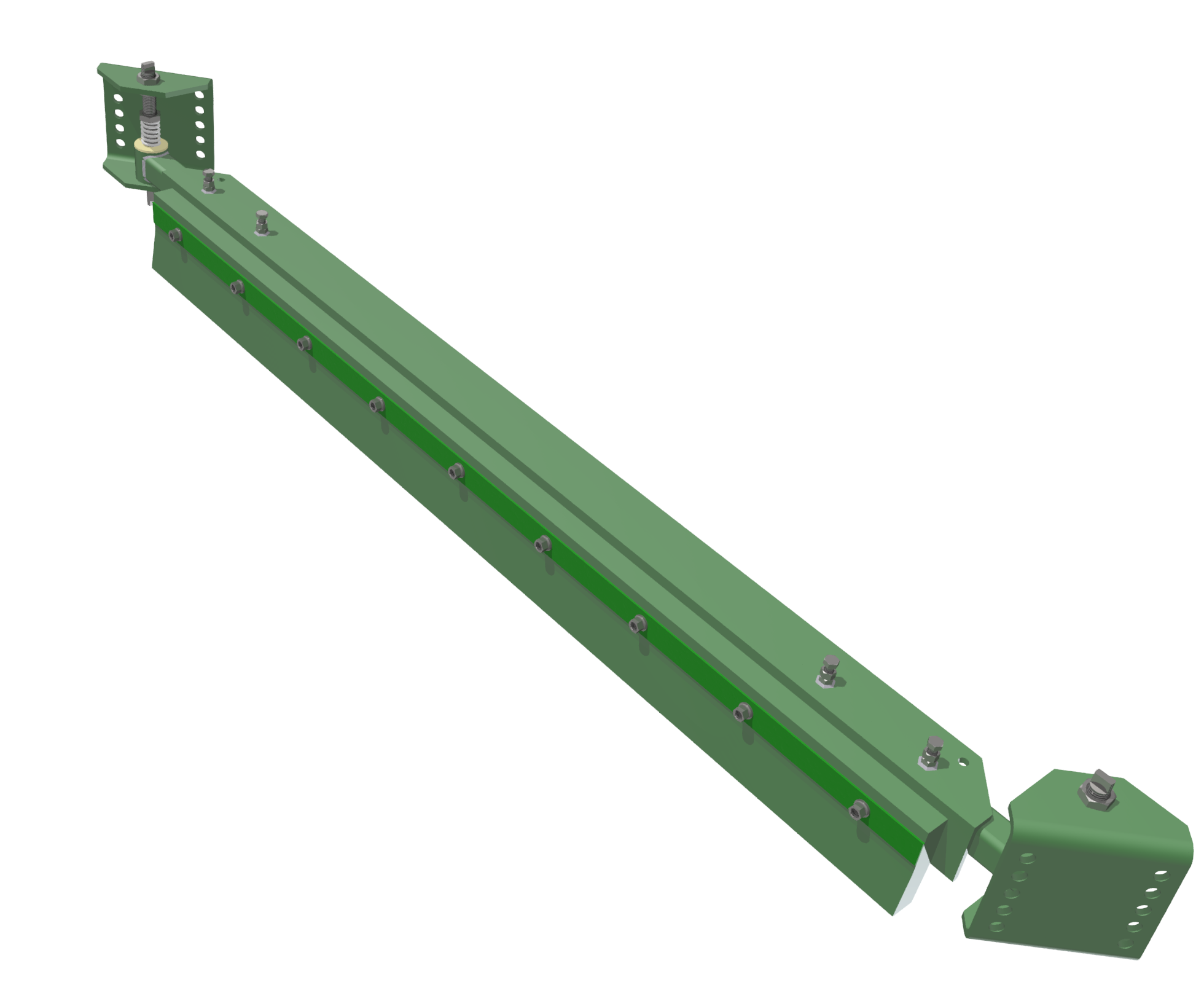

Protect your conveyor system from damaging debris with the SEC Business Group
Spring Tensioned Diagonal Plough. Designed for installation on the return side
of the conveyor belt, this rugged plough effectively removes rocks, carryback
material, and debris before they reach the tail pulley or other critical components.

By intercepting material early, the plough prevents debris from becoming trapped
between the belt and pulley, protecting the belt, pulley lagging, and mechanical
splices from unnecessary wear and costly damage.

Spring Tensioned Cleaning Performance

The spring tensioning system maintains consistent pressure between the plough blade
and the belt surface, allowing the blade to adapt to belt movement and surface
variations while maintaining effective cleaning performance.

This controlled pressure improves debris removal while minimising blade wear and
reducing the need for frequent adjustment or maintenance.

Durable Construction for Harsh Environments

Built for demanding bulk material handling environments, the Spring Tensioned
Diagonal Plough features a heavy-duty frame and durable polyurethane blade
designed to provide long service life.

The compact design allows installation near the tail pulley or counterweight
bend pulley where debris removal is most critical.

Features & Benefits

• Removes rocks, debris, and carryback from the return side of the belt.
• Protects tail pulleys, belt surfaces, and conveyor components from damage.
• Spring tensioning system maintains consistent blade pressure.
• Heavy-duty plough frame designed for rugged operating environments.
• Durable polyurethane blade provides long wear life.
• Reduces carryback, spillage, and maintenance requirements.
• Suitable for installation near tail pulleys and bend pulleys.

Applications

• Coal
• Iron Ore
• Hard Rock
• Heavy Metals
• Sand & Gravel
• Recycling
• Power Generation
• Steel Mills

Specification Table
