SEC Business Group Suspended Vee Return Idlers provide reliable return-side
belt support while assisting with belt alignment and tracking on conveyor systems.
The suspended configuration allows the idler to move with the belt,
making it ideal for longwall mining, track-shifting, and other
mobile or frequently adjusted conveyor applications.
Available with chain, bracket, or hook mounting configurations and
compatible with standard, rubber disc, or poly disc rollers to suit
a wide range of operating conditions.
Description
SEC Business Group Suspended Vee Return Idlers are engineered and fabricated
to meet or exceed industry standards and customer specifications.
Manufactured using advanced production techniques including CNC laser
cutting and robotic welding, these idlers deliver excellent strength,
precision, and durability.
All welding is performed in accordance with AS1554.1 SP welding standards,
and strict quality management systems ensure consistent tolerance and
manufacturing quality across every unit.
Suspended vee return idlers are designed for installation on the return
side of the conveyor belt, where the vee profile assists with maintaining
proper belt alignment and tracking.
The suspended configuration allows the idler to move slightly with the belt,
helping to stabilise the belt position and improve overall conveyor performance.
These idlers are commonly used in applications where conveyor alignment is
regularly adjusted, such as longwall coal mining operations or open-cut
track-shifting conveyors.
Their flexible mounting design allows them to adapt to changing conveyor
positions while continuing to provide reliable belt support and tracking assistance.

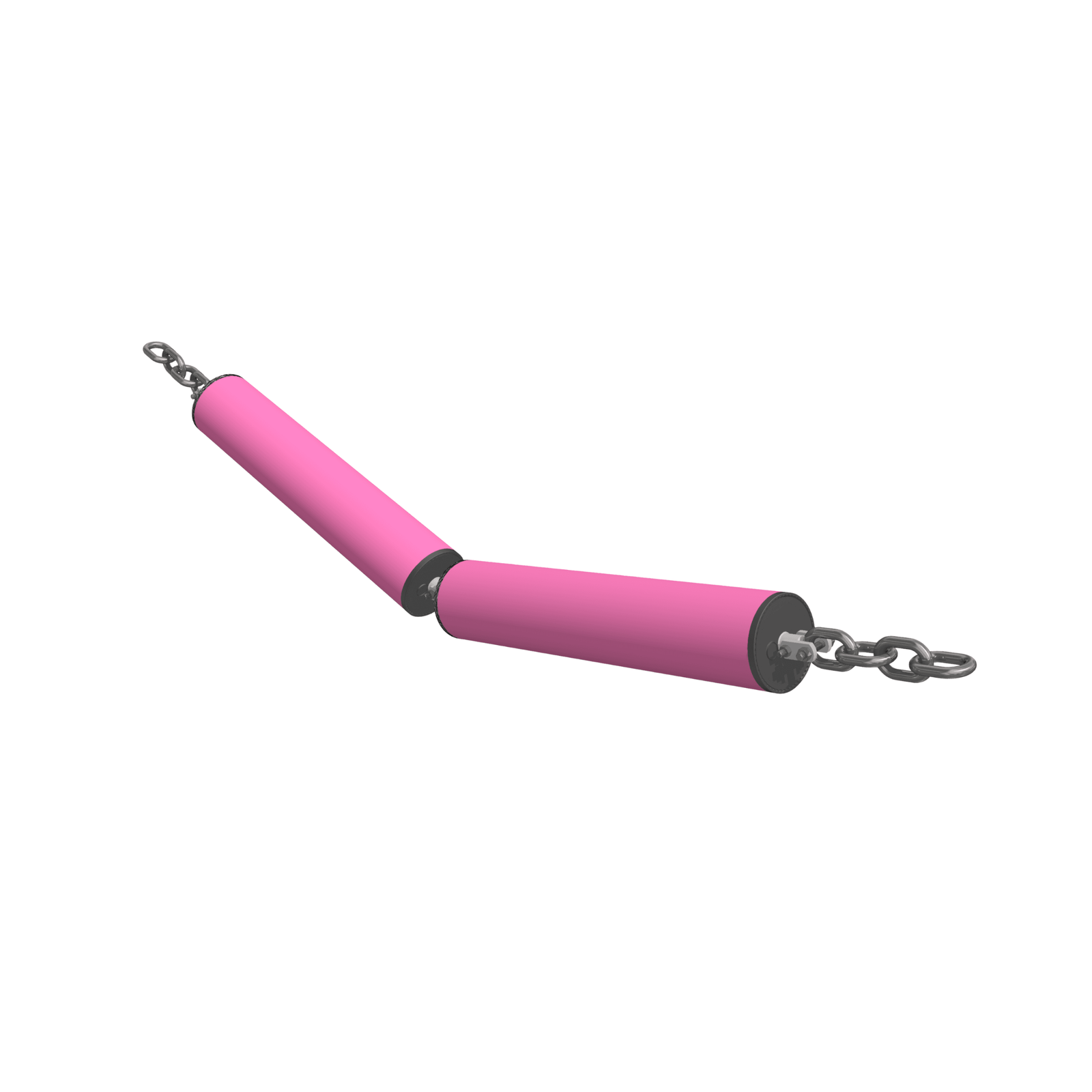

SEC Business Group Suspended Vee Return Idlers can be supplied with a
variety of connection configurations, including chains, brackets,
or hook mounts, allowing them to be adapted to different conveyor
structures and site requirements.
Typical vee angles include 5°, 7.5°, 10°, and 15°, with custom
trough angles available if required. These idlers can be fitted with
standard return rollers, rubber disc rollers, or poly disc return rollers
depending on the application and operating conditions.
All components are supplied galvanised as standard for corrosion resistance
and durability, with powder-coated options available if required.
Suspended vee return idlers are available to suit belt widths from
450mm up to 3000mm, with custom designs available to suit specific
conveyor configurations.
A wide range of frame types and sizes are held in stock for fast supply.
