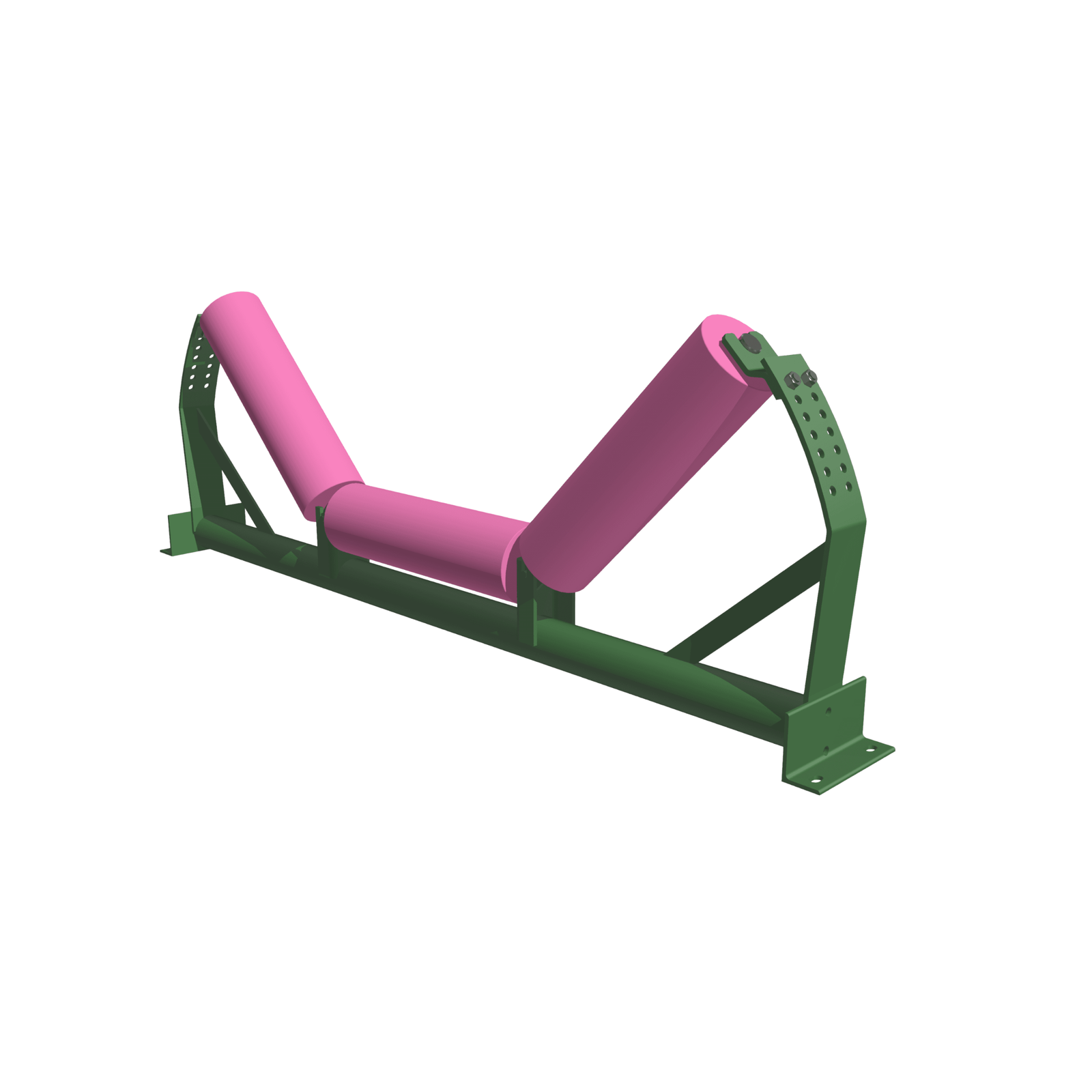

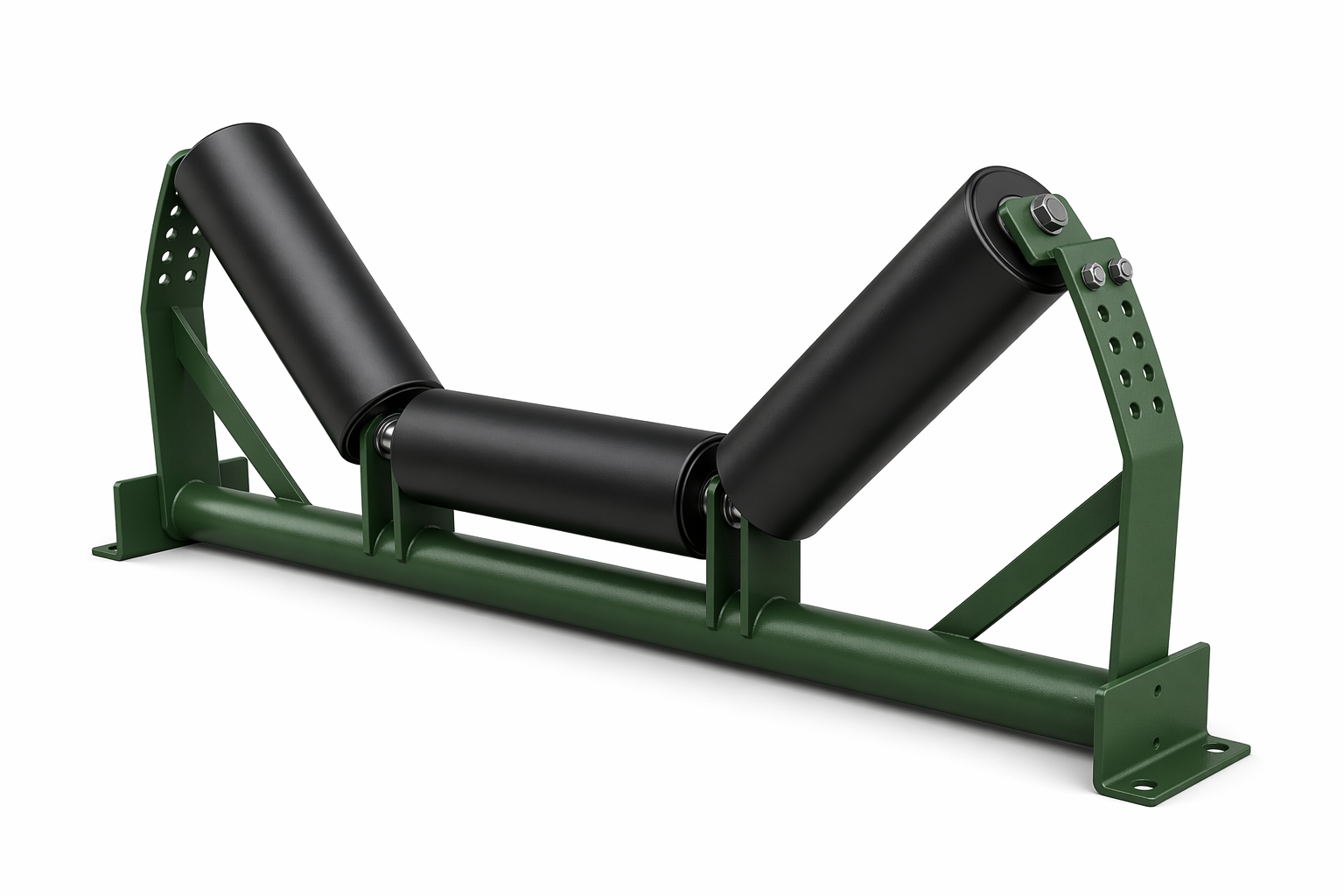

Transition Idlers

Smooth Belt Transition for Reliable Conveyor Operation

SEC Business Group Transition Idler Frames are engineered and fabricated
to meet or exceed industry standards and customer specifications.
Manufactured using advanced production methods including CNC laser
cutting and robotic welding, these frames deliver exceptional strength,
precision, and durability.

All welding is performed in accordance with AS1554.1 SP welding standards,
ensuring consistent quality and tight tolerance control across all
manufactured components.

Designed for Controlled Belt Transition

Transition idlers are installed in the section of the conveyor where the
belt transitions from a flat profile to a troughed configuration, or from
trough back to flat. Proper transition support is critical in preventing
excessive belt stress, edge damage, and premature belt wear.

By gradually introducing the trough angle, transition idlers help maintain
proper belt alignment and load support, ensuring reliable conveyor
operation and extended belt life.

Flexible Roller Configurations

SEC Business Group Transition Idlers are available in both 3-roll and
5-roll configurations, allowing the transition angle to be progressively
adjusted to suit different conveyor designs and operating conditions.

Multiple transition angle ranges are available to accommodate varying
belt tensions, conveyor lengths, and loading conditions.

Typical Transition Angle Ranges

• 5° – 20°
• 15° – 30°
• 30° – 45°
• 40° – 55°

Custom transition angle ranges can also be supplied to suit specific
conveyor designs and operational requirements.

Durable Construction and Finish

Transition idler frames are supplied galvanised as standard to provide
excellent corrosion resistance in demanding operating environments.
Powder-coated finishes are also available where specific coating
requirements apply.

Frames are available to suit belt widths from 450mm up to 3000mm, and
custom designs can be produced to suit specialised roller configurations
or conveyor layouts.

Features & Benefits

• Designed for smooth belt transition between flat and troughed conveyor sections.
• Helps reduce belt stress, edge damage, and premature belt wear.
• Available in 3-roll or 5-roll configurations.
• Multiple adjustable transition angle ranges available.
• Manufactured using CNC laser cutting and robotic welding.
• Welding completed to AS1554.1 SP welding standards.
• Galvanised frames supplied as standard for corrosion resistance.
• Powder-coated frame options available.
• Suitable for belt widths from 450mm to 3000mm.
• Custom configurations available to suit specific conveyor requirements.
