U Secondary Belt Cleaners

Features & Benefits

Unique U-Shaped Blade Design –
The patented U-shaped blade concentrates cleaning pressure in the centre
of the belt where material build-up is typically most severe,
maximising carryback removal in the primary material-carrying zone.
Fast & Easy Blade Replacement –
Cartridge-style blade assembly allows for quick removal and replacement,
reducing maintenance time and minimising conveyor downtime.
Simple Tension Adjustment & Visual Check –
The spring tensioning system enables straightforward adjustment and
provides a clear visual indication of correct operating pressure.
A recommended 1–2 mm gap between spring coils confirms proper tensioning.
Integrated Blade Stop Protection –
Built-in blade stop mechanism prevents over-travel once the blade is fully worn,
protecting both the conveyor belt and cleaner assembly from unnecessary damage.

Description

Engineered for Wet, Sticky and Compacted Materials

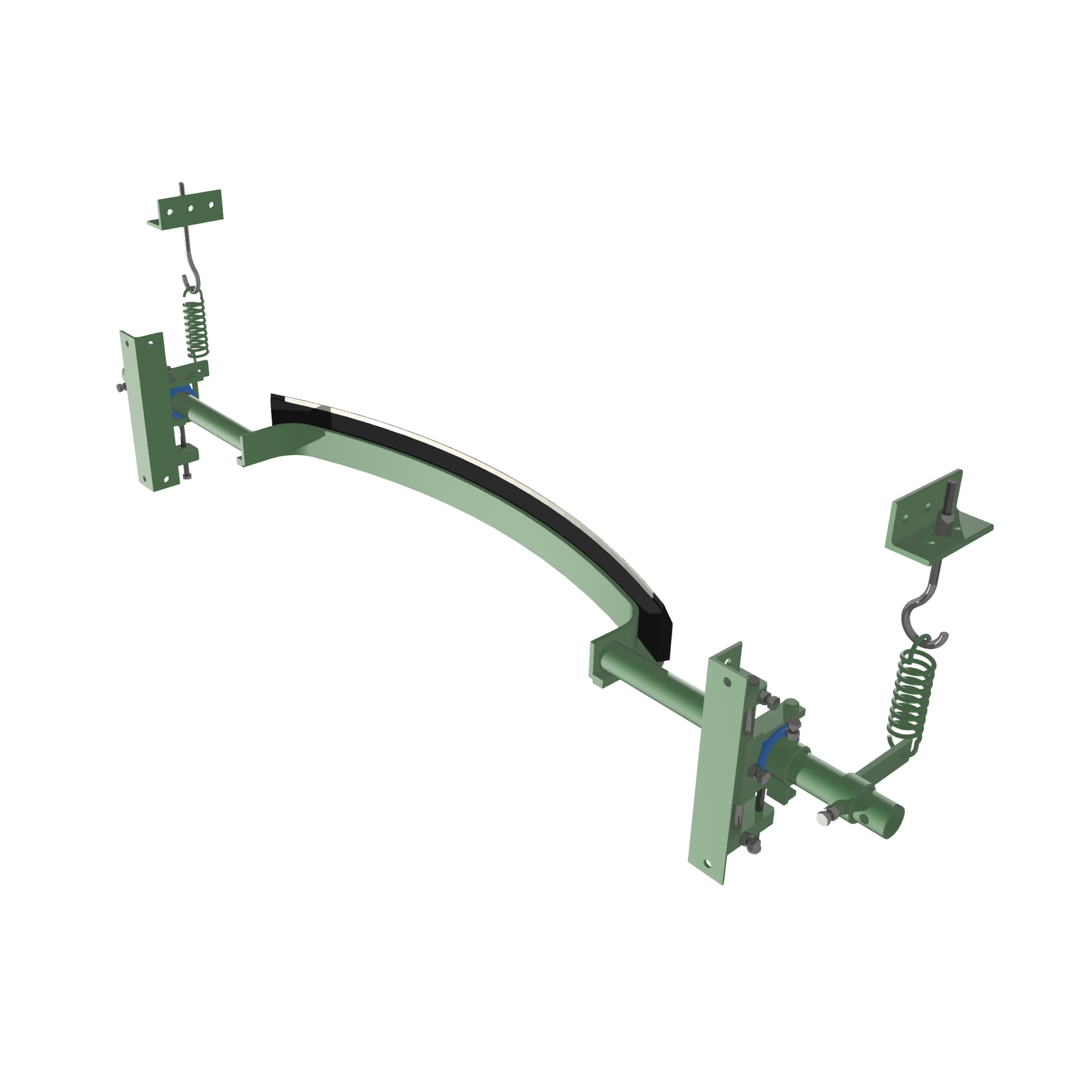

The SEC Business Group U Belt Cleaner is specifically designed to deliver
high-performance cleaning in applications involving wet, sticky, or
compacted bulk materials.

Its patented U-shaped blade profile conforms to the belt surface,
concentrating cleaning force where it is most effective and improving
overall carryback removal.

Dual-Action Cleaning Design

Integrated carbide tips aggressively remove hardened and compacted material,
while the durable rubber backing functions as a squeegee to eliminate
wet fines and sludgy residues.

This combined cleaning action ensures maximum material removal and
consistently improved belt cleanliness.

Advanced Tension Control System

A dual spring tensioning system maintains consistent and controlled
blade pressure across the full belt width.

This ensures uniform cleaning performance while minimising excessive blade wear
and reducing stress on the conveyor structure.

Optimised Cleaning Geometry

The U-shaped blade configuration and offset pole design focus cleaning
power toward the centre of the belt — the primary material-carrying zone —
where carryback is typically most severe.

For optimal system performance, the U Belt Cleaner can be paired with
an SEC Business Group primary cleaner to form a fully integrated
belt cleaning arrangement.

This combination significantly reduces material build-up,
minimises maintenance downtime, and improves overall conveyor efficiency.
